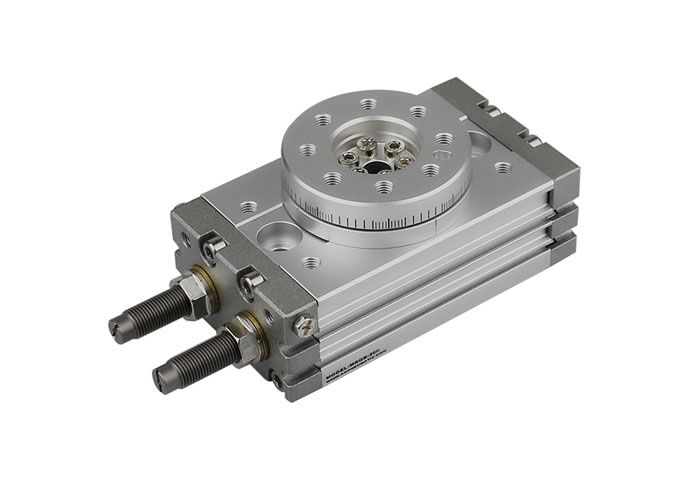

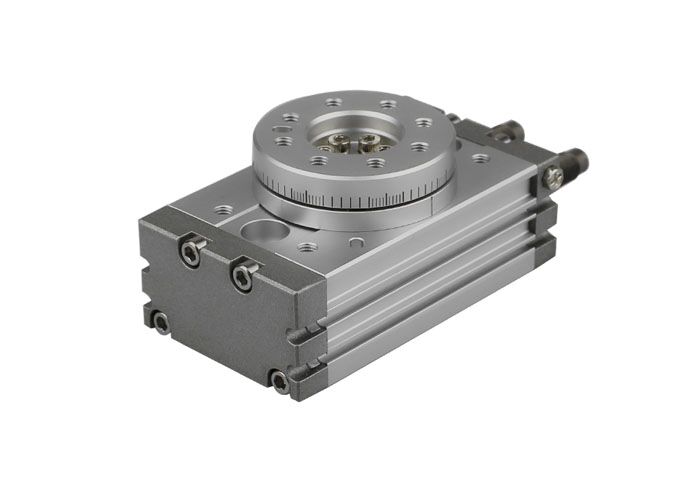

MSQ Series double-acting small rotary swaying type pneumatic standard air cylinder.
Additional information
Product Details:
MSQ Series double-acting small rotary swaying type pneumatic standard air cylinder.
1.Corrosion Resistance: the Air Cylinder is Made of High-Quality Aluminum, High Strength, No Distortion, Corrosion Resistance, Long Service Life, More Durable.
2.Rotary table type, convenient installation work.
3.Swing smooth, accurate.
4. Standard belt angle adjustment device, adjust the angle range. 5. The built-in magnetic ring, the magnetic switch can be installed.
Technical Specification
|
Bore Size(mm) |
10 |
20 |
30 |
50 |
|
|
Fluid |
Air (not lubrication) |
||||
|
Acting Mode |
Double acting |
||||
|
Max. Working Pressure |
Angled Adjustment Screws |
1MPa |
|||
|
With Hydraulic Buffer |
0.6MPa |
||||
|
Min.Working Pressure |
0.1MPa |
||||
|
Fluid Temperature |
0~60℃(Not frozen) |
||||
|
Buffering |
Rubber Cushion (standard)/ hydraulic shock absorber (optional) |
||||
|
Allowed Power (kgf*cm) |
Angled Adjustment Screws |
0.007J |
0.025J |
0.048J |
0.081J |
|
With Hydraulic Buffer |
0.039J |
0.116J |
0.294J |
||
|
Adjustable Angle Range |
0-190° |
||||
|
Max.Swing Angle |
190° |
||||
|
Stable Swing Time |
Angled Adjustment Screws |
0.2~1.0s/90° |
|||
|
With Hydraulic Buffer |
0.2~0.7s/90° |
||||
|
Port size |
M5x0.8 |
Rc 1/8 |
|||
|
Bending Torque(N.m) |
0.89 1.84 |
2.73 |
4.64 |
||
