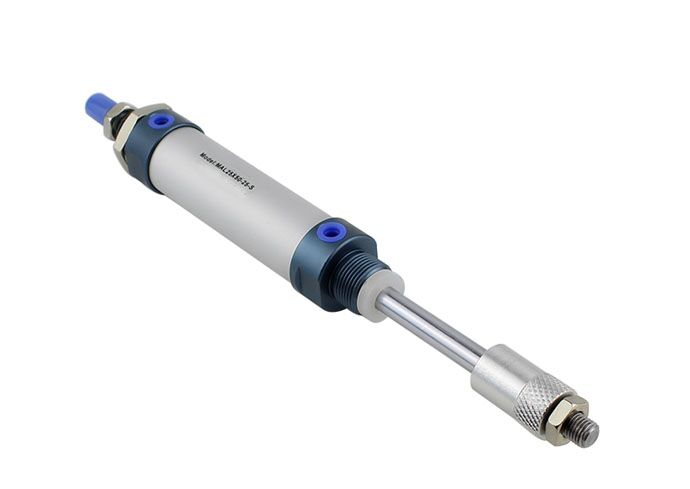

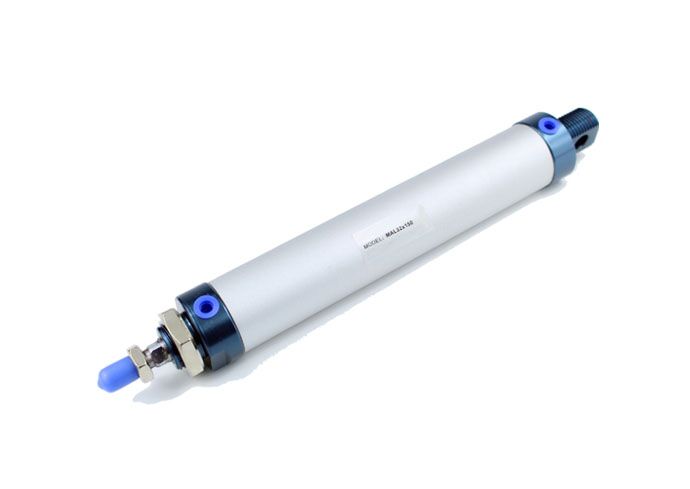

MAL Standard Mini Aluminum Alloy Material Piton Type micro Pneumatic Air Cylinders
Additional information
Product Details:
MAL Standard Mini Aluminum Alloy Material Piston Type micro Pneumatic Air Cylinders
| Bore Size(mm) | 16 | 20 | 25 | 32 | 40 |
| Acting Mode | Double Acting | ||||
| Working Media | Cleaned Air | ||||
| Working Pressure | 0.1~0.9Mpa(1-7kgf/cm2) | ||||
| Proof Pressure | 1.35Mpa(10.5kgf/cm2) | ||||
| Working Temperature | -5~70℃ | ||||
| Buffering mode | Air Buffering | ||||
| Port Size | M5 | 1/8″ | |||
| Body Material | Aluminum Alloy | ||||
| Bore Size(mm) | A | A3 | Z4 | B | C | D | D1 | E | F | G | H | I | J |
| 16 | 107 | 131 | 137 | 40 | 51 | 16 | 16 | 24 | 16 | 10 | 16 | 10 | 5 |
| 20 | 131 | 150 | 147 | 40 | 70 | 21 | 12 | 28 | 12 | 16 | 20 | 12 | 5 |
| 25 | 135 | 158 | 154 | 44 | 70 | 21 | 14 | 30 | 14 | 16 | 22 | 17 | 6 |
| 32 | 141 | 158 | 154 | 44 | 70 | 21 | 14 | 30 | 14 | 16 | 22 | 17 | 6 |
| 40 | 143 | 162 | 160 | 46 | 70 | 27 | 14 | 32 | 14 | 16 | 24 | 19 | 7 |
| 50 | 170 | 64 | 70 | 36 | 42 | 22 | 16 | 32 |
| Bore Size(mm) | K | L | M | ΦP | Q | R | S | U | V | X | AR | AX | AY |
| 16 | M6X1 | M16X1.5 | 14 | 6 | 12 | 16 | 10 | 22 | 6 | M5 | 6 | 25 | 22 |
| 20 | M8X1.25 | M22X1.5 | 10 | 8 | 16 | 19 | 12 | 30 | 10 | 1/8 | 7 | 33 | 29 |
| 25 | M10X1.25 | M22X1.5 | 12 | 8 | 16 | 19 | 12 | 34 | 12 | 1/8 | 7 | 33 | 29 |
| 32 | M10X1.25 | M24X2.0 | 12 | 10 | 16 | 25 | 15 | 39 | 16 | 1/8 | 8 | 37 | 32 |
| 40 | M12X1.25 | M30X2.0 | 12 | 12 | 20 | 25 | 15 | 49 | 16 | 1/8 | 9 | 47 | 41 |
| 50 | M16X1.5 | M36X2.0 | 20 | 16 | 20 | 35 | 21 | 55 | 20 | 1/8 |
