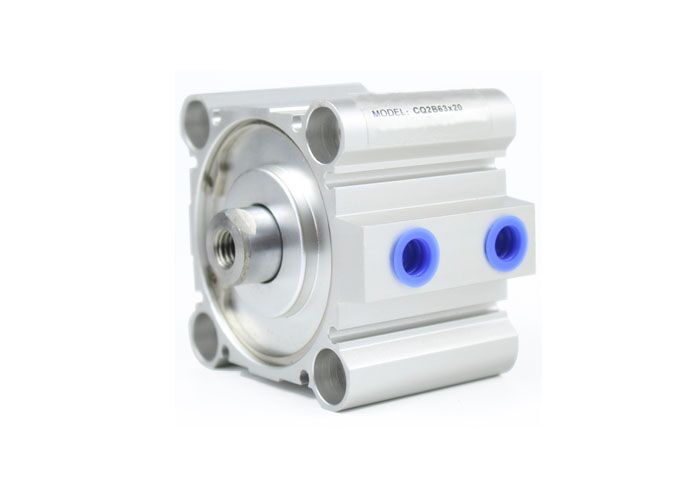

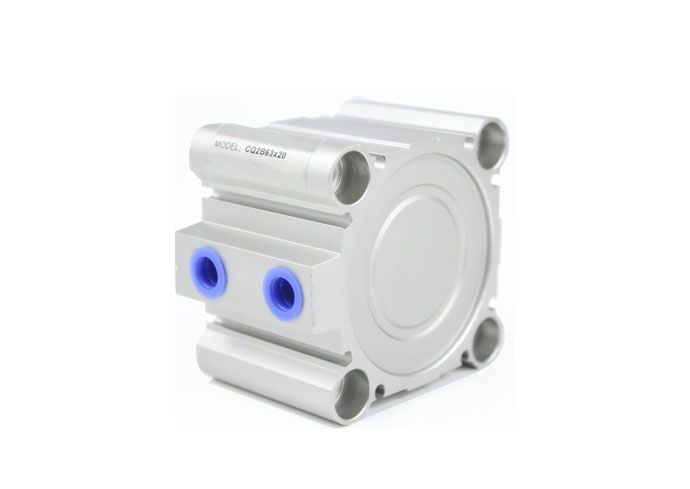

CQ2 series Compact Cylinder
CQ2 series Compact Cylinder
CQ2 Series Standard Pneumatic Air Cylinder is compact and reliable, which can effectively save installation space.
Additional information
Product Details:
CQ2 Series Standard Pneumatic Air Cylinder is compact and reliable, which can effectively save installation space. Wear-resistant, good durability, with magnetic induction switch slot around the cylinder block, easy to install induction switch. 1. After the rolling treatment of the inner diameter of the thin cylinder block, the hard oxidation treatment is carried out, which is wear-resistant and durable. 2. The piston sealing thin cylinder adopts the special-shaped two-way sealing structure, with compact size and oil storage function. 3. Compact structure, thin cylinder can effectively save installation space. 4. There is a magnetic induction switch slot around the cylinder block, which is convenient to install the induction switch.
Technical Specification
| Bore Size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Acting Mode | Double Acting | |||||||||
| Working Media | Cleaned Air | |||||||||
| Working Pressure | 0.1-0.9Mpa(kaf/square centimeter) | |||||||||
| Proof Pressure | 1.35Mpa(kaf/square centimeter) | |||||||||
| Working Temperature | -5~70℃ | |||||||||
| Buffering Mode | Without | |||||||||
| Port Size | M5 | 1/8 | 1/4 | 3/8 | ||||||
| Body Material | Aluminum Alloy | |||||||||
Selection Of Sensor Switch
| Mode | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Sensor Switch | D-A73D-A93 | ||||||||
Stroke Of Cylinder
| Bore Size(mm) | Standard Stroke(mm) | Max Stroke(mm) | Allowable Stroke(mm) | |||||||||
| 12 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 50 | 60 |
| 16 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 50 | 60 |
| 20 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 80 | 90 |
| 25 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 80 | 90 |
| 32 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 130 | 150 |
| 40 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 130 | 150 |
| 50 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 130 | 150 |
| 63 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 130 | 150 |
| 80 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 130 | 150 |
| 100 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 130 | 150 |
| Bore Size(mm) | B | ΦD | E | F | H | C | I | J | K | L | M | ΦN | ΦO | P | Q | W | Z | |
| Magnet type | Standard type | |||||||||||||||||
| 12 | 27 | 17 | 6 | 25 | 5 | M3X0.5 | 6 | 32 | – | 5 | 3.5 | 15.5 | 3.5 | 6.5depth3.5 | M5X0.8 | 7.5 | – | – |
| 16 | 28.5 | 18.5 | 8 | 29 | 5.5 | M4X0.7 | 8 | 38 | – | 6 | 3.5 | 20 | 3.5 | 6.5depth3.5 | M5X0.8 | 8 | – | 10 |
| 20 | 29.5 | 19.5 | 10 | 36 | 5.5 | M5X0.8 | 7 | 47 | – | 8 | 4.5 | 25.5 | 5.5 | 9depth7 | M5X0.8 | 9 | – | 10 |
| 25 | 32.5 | 22.5 | 12 | 40 | 5.5 | M6X1.0 | 12 | 52 | – | 10 | 5 | 28 | 5.5 | 9depth7 | M5X0.8 | 11 | – | 10 |
| 32 | 33 | 23 | 16 | 45 | 9.5 | M8X1.25 | 13 | 60 | 4.5 | 14 | 7 | 34 | 5.5 | 9depth7 | 1/8 | 10.5 | 49.5 | 18 |
| 40 | 39.5 | 29.5 | 16 | 52 | 8 | M8X1.25 | 13 | 69 | 5 | 14 | 7 | 40 | 5.5 | 9depth7 | 1/8 | 11 | 57 | 18 |
| 50 | 40.5 | 30.5 | 20 | 64 | 10.5 | M10X1.5 | 15 | 86 | 7 | 17 | 8 | 50 | 6.6 | 11depth3 | 1/4 | 10.5 | 74 | 22 |
| 63 | 46 | 36 | 20 | 77 | 10.5 | M10X1.5 | 15 | 103 | 7 | 17 | 8 | 60 | 9 | 14depth10.5 | 1/4 | 15 | 84 | 22 |
| 80 | 53.5 | 43.5 | 25 | 98 | 12.5 | M16X2.0 | 21 | 132 | 6 | 22 | 10 | 77 | 11 | 17.5depth13.5 | 3/8 | 16 | 104 | 26 |
| 100 | 63 | 53 | 30 | 117 | 13 | M20X2.5 | 27 | 156 | 6.5 | 27 | 12 | 94 | 11 | 17.5depth13.5 | 3/8 | 23 | 123.5 | 26 |
| Bore Size(mm) | C | X | D | H | L | K | O | R |
| 12 | 9 | 10.5 | 6 | M5X0.8 | 14 | 5 | M4X0.7 | 7 |
| 16 | 10 | 12 | 8 | M6X1.0 | 15.5 | 6 | M7X0.7 | 7 |
| 20 | 13 | 14 | 10 | M8X1.25 | 18.5 | 8 | M6X1.0 | 10 |
| 25 | 15 | 17.5 | 12 | M10X1.25 | 22.5 | 10 | M6X1.0 | 10 |
| 32 | 20.5 | 23.5 | 16 | M14X1.5 | 28.5 | 14 | M6X1.0 | 10 |
| 40 | 20.5 | 23.5 | 16 | M14X1.5 | 28.5 | 14 | M6X1.0 | 10 |
| 50 | 26 | 28.5 | 20 | M18X1.5 | 33.8 | 17 | M8X1.25 | 14 |
| 63 | 26 | 28.5 | 20 | M18X1.5 | 33.5 | 17 | M10X1.5 | 18 |
| 80 | 32.5 | 35.5 | 25 | M22X1.5 | 43.5 | 22 | M12X1.75 | 22 |
| 1002 | 32.5 | 35.5 | 30 | M26X1.5 | 43.5 | 27 | M12X1.75 | 22 |
