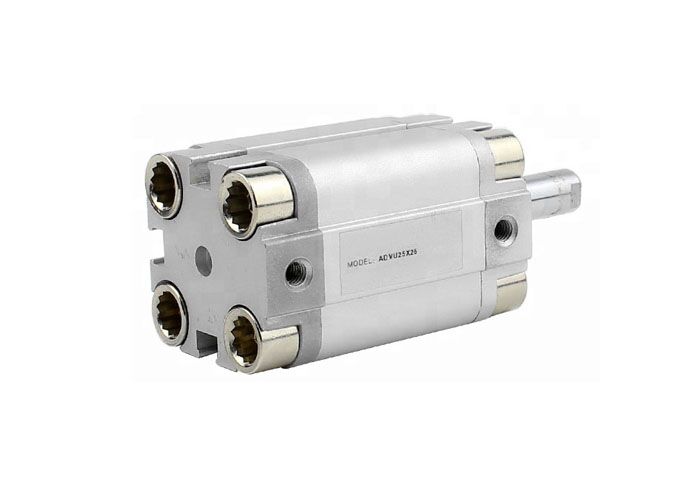

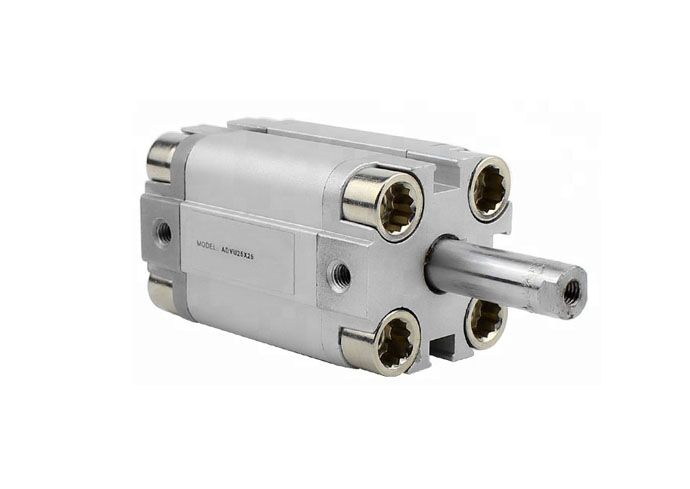

ADVU series Compact Air Cylinder
ADVU series Compact Air Cylinder
ADVU compact aluminum alloy double-acting pneumatic cylinder
Additional information
Product Details:
ADVU compact aluminum alloy double-acting pneumatic cylinder piston
| Bore Size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Acting Mode | Double Acting, single rod/double rod | |||||||||
| Working Media | Filtered compressed air | |||||||||
| Working Pressure | 0.1~0.9Mpa(1-7kgf/cm2) | |||||||||
| Proof Pressure | 1.35Mpa(10.5kgf/cm2) | |||||||||
| Working Temperature | -5~70℃ | |||||||||
| Buffering mode | Air Buffering (standard) | |||||||||
| Port Size | m5 | 1/8 | 1/4 | |||||||
| Body Material | Aluminum Alloy | |||||||||
