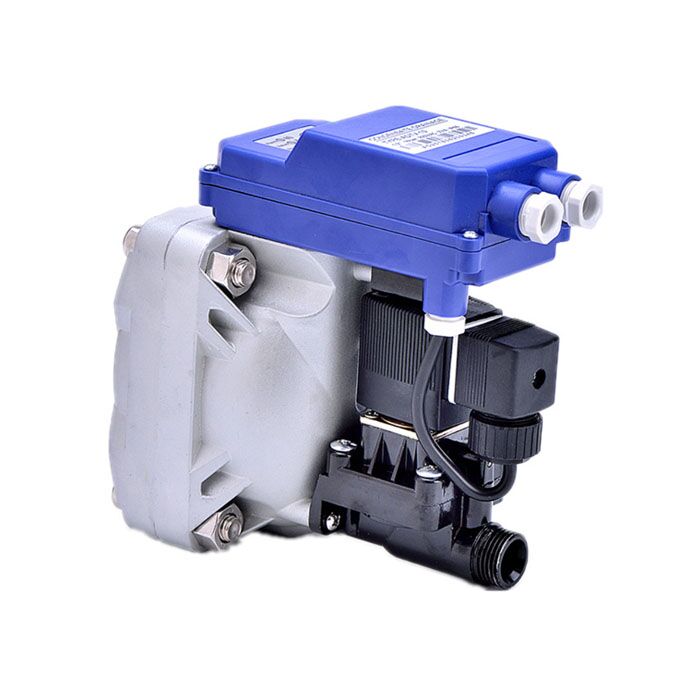

HR0912 Zero loss Automatic Drain Valve

HR0912 Zero loss Automatic Drain Valve

This kind of automatic drain valve is designed for condensate discharge in a compressed air network. It adopts capacitive electronic liquid level sensor detection, single-chip program control, suitable for all kinds of air compressors, compressed air tanks, and air dryers, air filters, and pipes, etc.

Additional information

Operating Temperature

1-60℃

Working Pressure

1-16bar

Applicable Industries

Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food & Beverage Shops

Warranty

1.5 year

Product Details:

Hot sell Zero Loss Automatic electronic solenoid drain valve for big capacity compressor air dryer.

Features:
1. Liquid level sensor control, no compressed air loss
2. Intelligent operation and monitoring, manual detection and fault remote alarm
3. Pilot valve, large discharge port
4. Super corrosion resistance, long service life

Details:
Technical parameters
Max  input power
<2.0W
Max work pressure(Bar)
16
Weight(kg)
2.0
Material
Aluminum alloy
Air inlet port size
2*G1/2
Air Outlet port size
G1/2
Max air compressor airflow(m³/min)
35
Max refrigerate air dryer airflow(m³/min)
70
Max air filter airflow(m³/min)
350

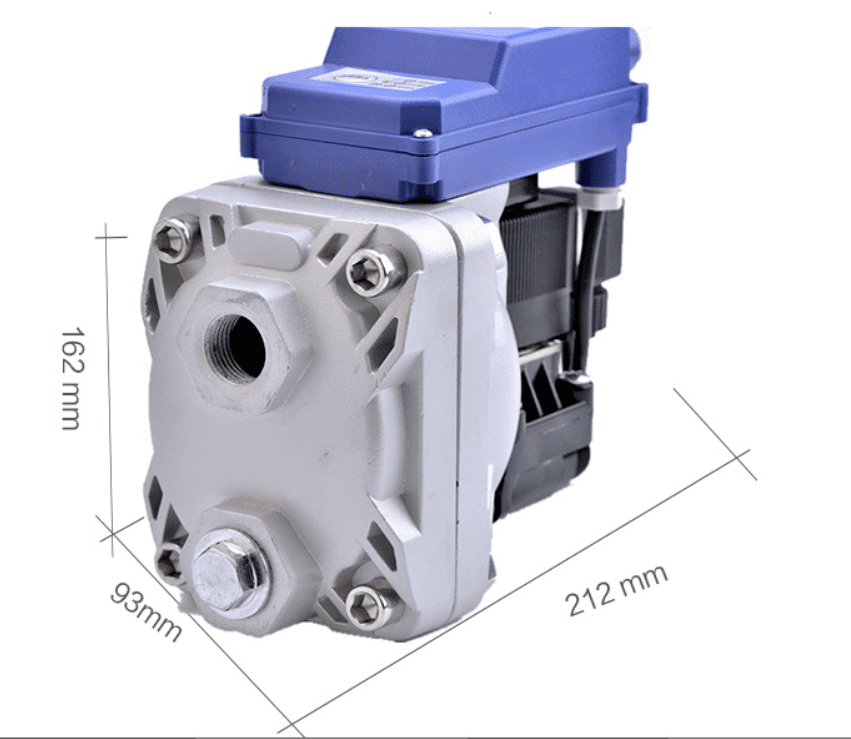

Dimension
212*93*162(mm)

Dimension:
