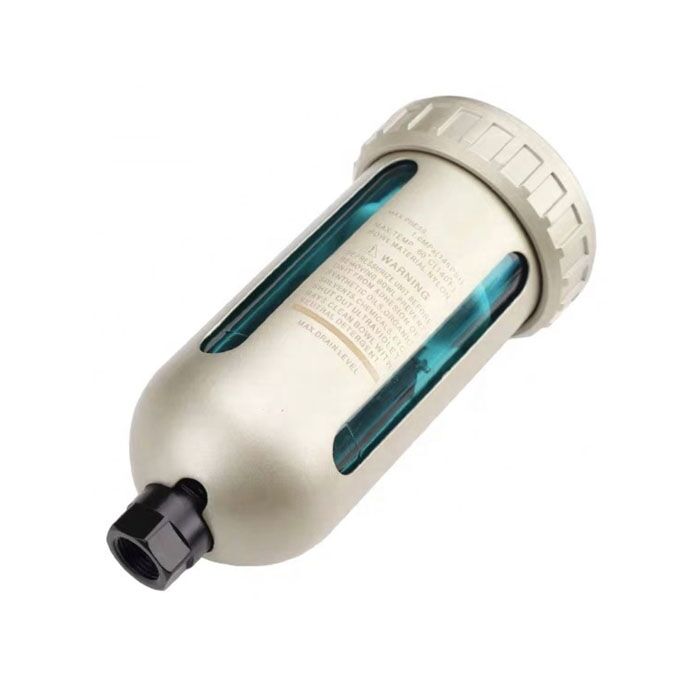

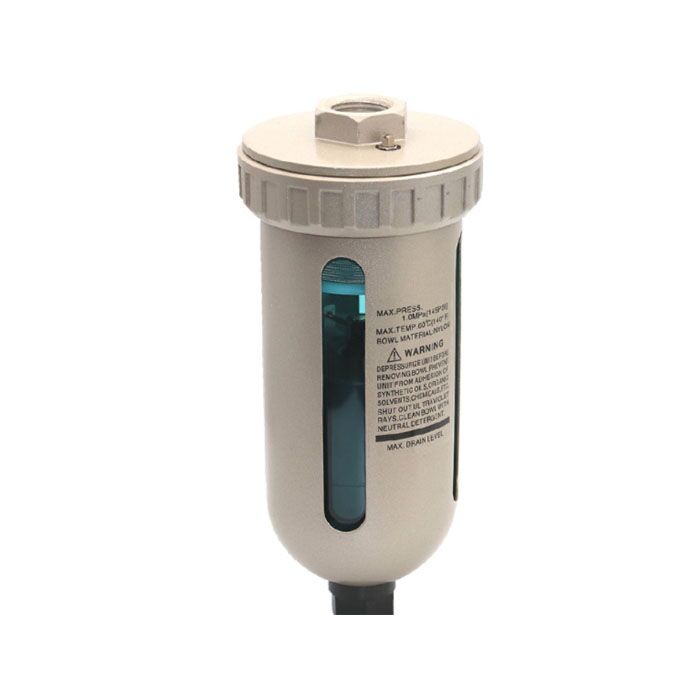

AD402 Auto Drain trap

AD402 Auto Drain trap

The pneumatic automatic drainer can be used in the compressed air equipment and pipeline, which can automatically discharge the condensate generated inside out of the compressed system at any time, so as to keep the compressed air dry and clean. Applicable to: air compressor, air storage tank, filter, air main pipe, etc

Additional information

Max. Pressure resistance

1.5Mpa

Weight

0.62kg

Material

Aluminium die casting

Product Details:

AD402 Pneumatic Automatic Drain Valve, auto solenoid drain valve, Auto water trap for screw air compressor.

The pneumatic automatic drainer can be used in the compressed air equipment and pipeline, which can automatically discharge the condensate generated inside out of the compressed system at any time, so as to keep the compressed air dry and clean. Applicable to: air compressor, air storage tank, filter, air main pipe, etc


Model
AD402
Working pressure
0.2-0.8MPA(MAX1.5MPA)
Working temperature
5-60℃
Woking Medium
Compressed air
 port size
G3/8;G1/2
Drain Status
Auto drain / Normal open type
Attention:The drainer should be installed vertically and the drain port facing down.
