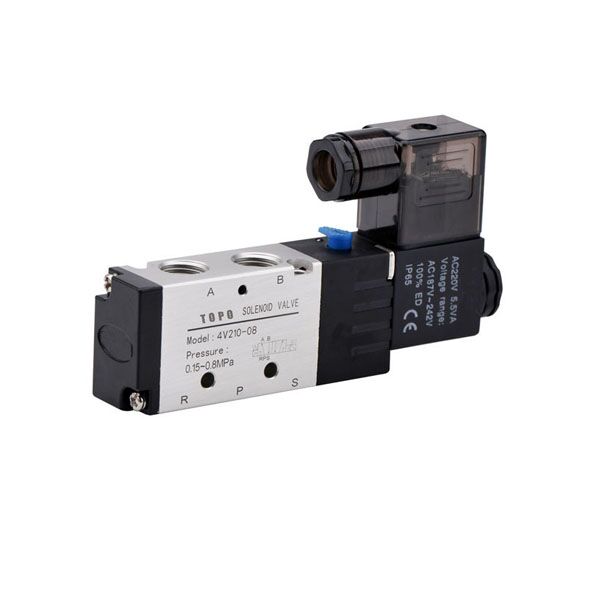

4V series Pneumatic Solenoid Valve
4V series Pneumatic Solenoid Valve
4V series pneumatic solenoid valve is most common and widely used in every industrial device, and can work together with other pneumatic parts well.
Additional information
Product Details:
2 position 5 port 4V series single/double coil pneumatic solenoid valve
Specifications:
|
Model
|
4V110-06
4V120-06
|
4V210-08
4V220-08
|
4V310-10
4V320-10
|
4V410-15
|
|
|
Joint size
|
Import=1/8
Export=1/8 Exhaust=1/8 |
Import=1/4
Export=1/4 Exhaust=1/8 |
Import=3/8
Export=3/8 Exhaust=1/4 |
Import=1/2
Export=1/2 Exhaust=1/2 |
|
|
Sectional Area
|
18mm²
|
18mm²
|
50mm²
|
50mm²
|
|
|
Flow
|
799NI/MIN
|
799NI/MIN
|
1554NI/MIN
|
2220NI/MIN
|
|
|
Working medium
|
Clean air(40um Filteration)
|
||||
|
Working pressure
|
0.2-0.8Mpa
|
||||
|
Max pressure
|
1.2Mpa
|
||||
|
Working temperature
|
-5-60℃
|
||||
|
Voltage range
|
-15%-10%
|
||||
|
Heat Resistant grade
|
B
|
||||
|
Protective class
|
IP65(DIN40050)
|
||||
|
Coil type
|
Din type/Flying leads
|
||||
How to Order:
