4M series Solenoid Valve
4M series Solenoid Valve
4M series solenoid valve is mainly used in the pneumatic actuators, 4M series have 5/2 type and 5/3 type, thread size range from M5 to 1/2″. 4M series Namur valves are famous for the superior quality and stable function.
Additional information
Product Details:
4M series Namur solenoid valve
4M series solenoid valve is mainly used in the pneumatic actuators, 4M series have 5/2 type and 5/3 type, thread size range from M5 to 1/2″. 4M series Namur valves are famous for the superior quality and stable function.
Specification:

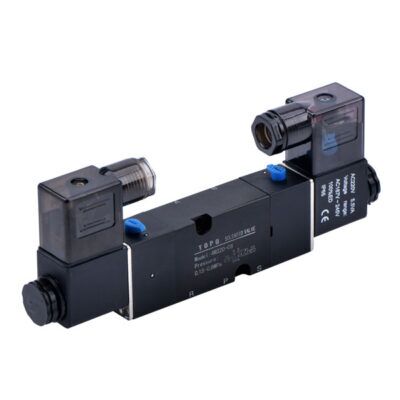

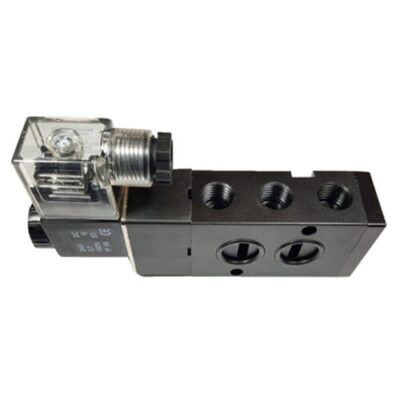

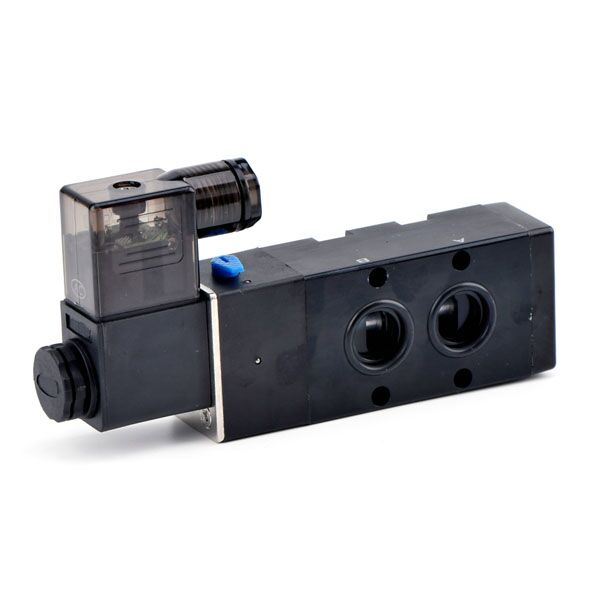

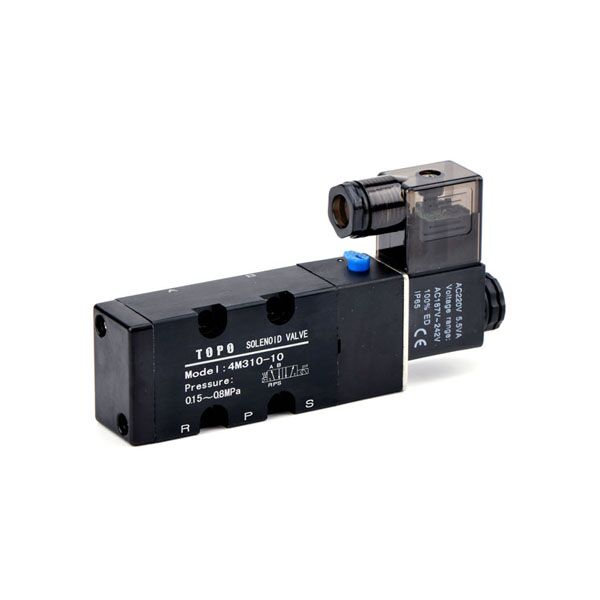

| Model | 4M110-M5 | 4M120-06 | 4M210-06 | 4M210-08 | 4M310-08 | 4M310-10 | 4M410-10 | 4M410-15 |
| Model | 4M120-M5 | 4M120-06 | 4M220-06 | 4M220-08 | 4M310-08 | 4M310-10 | 4M420-10 | 4M420-15 |
| Joint size | Import=M5
Export=M5 |
Import=1/8
Export=1/8 |
Import=1/8
Export=1/8 |
Import=1/4
Export=1/8 |
Import=1/4
Export=1/4 |
Import=1/4
Export=3/8 |
Import=3/8
Export=3/8 |
Import=1/2
Export=1/2 |
| Sectional area | 5.5mm²
(CV=0.31) |
5.5mm²
(CV=0.0.67) |
12mm²
(CV=0.78) |
14mm²
(CV=0.89) |
16mm²
(CV=1.4) |
25mm²
(CV=1.68) |
30mm²
(CV=1.68) |
50mm²
(CV=2.79) |
| Working medium | Clean air(40um Filteration) |
| Acting type | Internal guide |
| Working pressure | 0.15-0.9Mpa |
| Max. pressure | 1.2Mpa |
| Working temperature | -5-60℃ |
| Voltage range | -15%1~10% |
| Heat resistant grade | B |
| Protective class | IP65(DIN40050) |
| Coil type | Din type, Flying leads |
| Max acting frequency | 4times/s |
How to Order:
