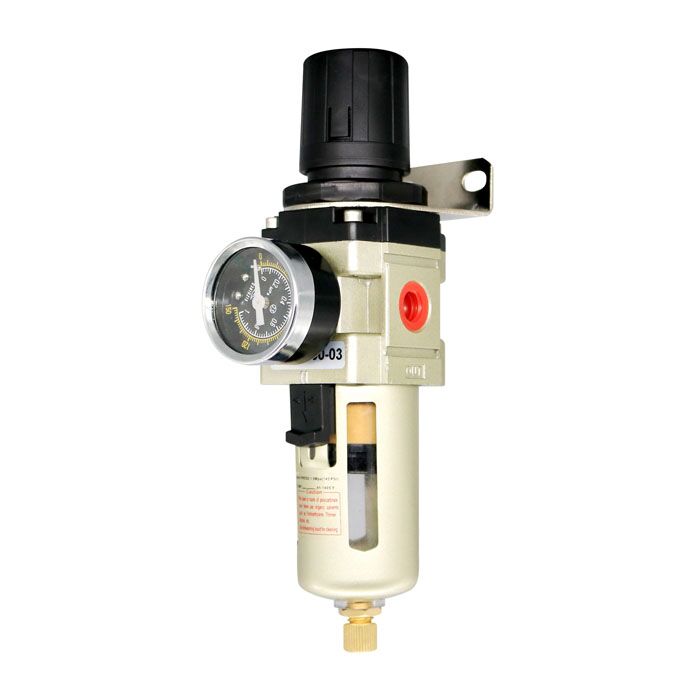

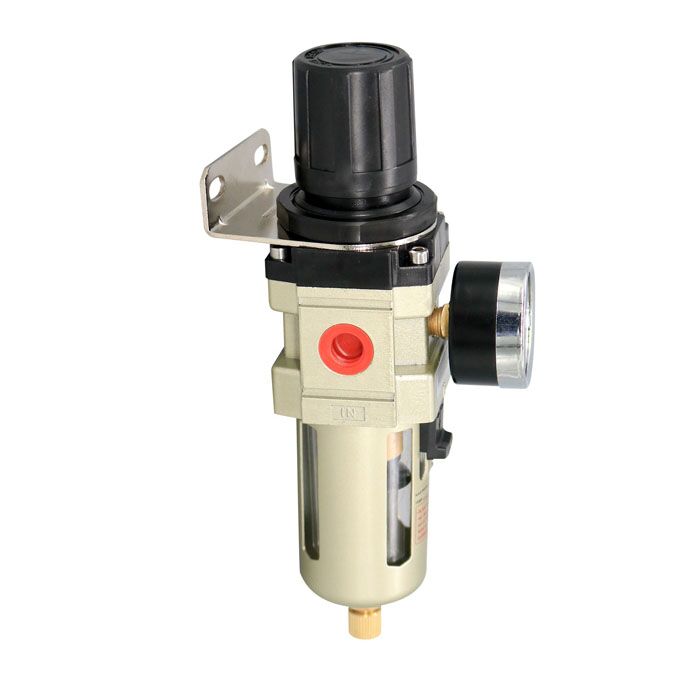

AW series Filter Regulator FR
AW series Filter Regulator FR
Equipped with a pressure gauge, a transparent cover provides easier and clearer pressure readings.
Easy to install and remove, easy to operate, no additional tools or accessories required.
Quality testing provides maximum reliability and performance even in the harshest environments.
Widely used in various pneumatic instruments and other pneumatic equipment.
Additional information
| Working Pressure | 0.5-8.5Bar |
|---|---|
| Operating Temperature | 5-60℃ |
| Max. Pressure resistance | 15 bar |
| Working Media | Air |
Product Details:
AW series SMC type air filter regulator FR, pneumatic regulator.
Product Description:
| Model | AW2000-01 AW2000-01D | AW2000-02 AW2000-02D | AW3000-02 AW3000-02D | AW3000-03 AW3000-03D | AW4000-03 AW4000-03D | AW4000-04 AW4000-04D | AW4000-06 AW4000-06D | AW5000-06 AW5000-06D | AW5000-10 AW5000-10D | |
| Port size RC(PT) | 1/8” | 1/4” | 1/4” | 3/8” | 3/8” | 1/2” | 3/4” | 3/4” | 1/4” | |
| Pressure gauge port size | 1/8” | 1/8” | 1/8” | 1/8” | 1/8” | 1/4” | 1/4” | 1/4” | 1/4” | |
| Flow rate(L/Min) | 550 | 550 | 2000 | 2000 | 4000 | 4000 | 4500 | 5500 | 5500 | |
| Proof pressure | 1.5Mpa(15.3kgf/cm²) | |||||||||
| Max. operating pressure | 1.0Mpa(15.3kgf/cm²) | |||||||||
| Ambient & fluid temperature | 5~60°C | |||||||||
| Nominal filtration rate | 40µm | |||||||||
| Adjustable Pressure range | 0.05~0.85Mpa | |||||||||
| Pressure gauge | Y40-01 | Y50-02 | ||||||||
Overall Dimension:
| Model | Port size | A | B | C | D | E | F | G | H | J | K | L | M | N | P | B(Connect auto drain) |
| AW1000 | M5×0.8 | 25 | 109.5 | 50.5 | 25 | 26 | 25 | 28 | 30 | 4.5 | 6.5 | 40 | 2 | 20.5 | 28 | 130 |
| AW2000 | 1/4 | 40 | 164.5 | 78 | 40 | 56.8 | 30 | 30 | 45 | 5.4 | 15.4 | 55 | 2.3 | 33.5 | 40 | 187.5 |
| AW3000 | 1/4″,3/8″ | 53 | 211 | 92.5 | 53 | 60.8 | 41 | 40 | 46 | 6.5 | 8 | 53 | 2.3 | 42.5 | 56 | 248.5 |
| AW4000 | 3/8″,1/2″ | 70 | 262.5 | 112 | 70 | 70.5 | 50 | 54 | 54 | 8.5 | 10.5 | 70 | 2.3 | 52.5 | 73 | 300 |
| AW4000-06 | 3/4″ | 75 | 267 | 114 | 70 | 70.5 | 50 | 54 | 56 | 8.5 | 10.5 | 70 | 2.3 | 52.5 | 73 | 304 |
| AW5000 | 3/4″,1 | 90 | 338 | 116 | 90 | 75.5 | 49.2 | 54 | 62 | 8.5 | 10.5 | 70 | 2.3 | 52.5 | 90 | – |
