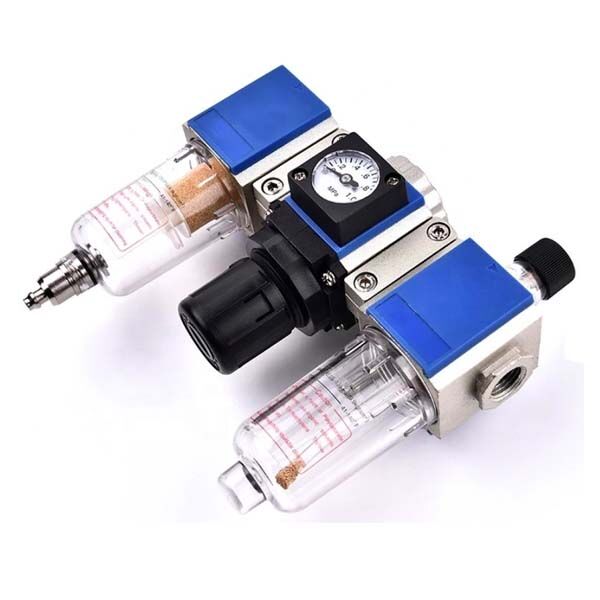

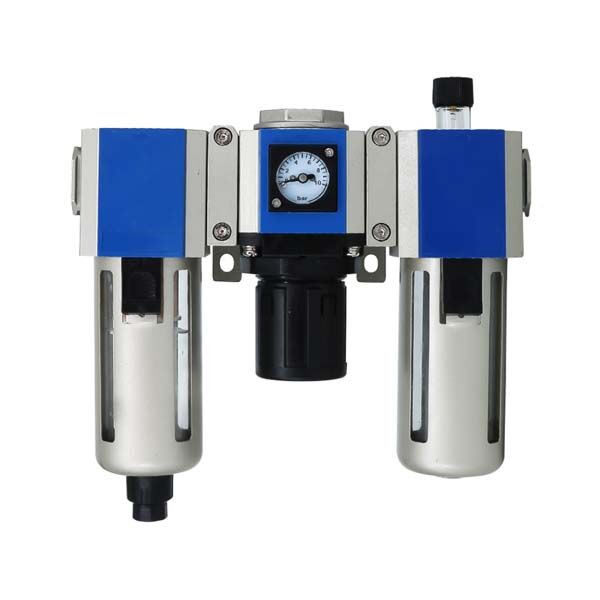

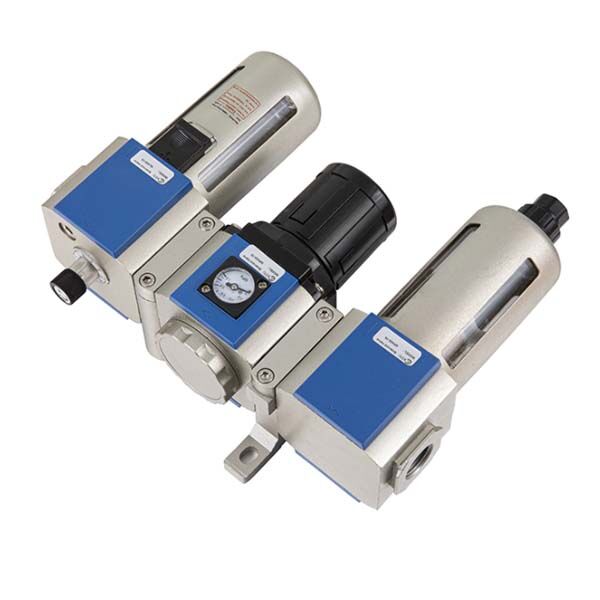

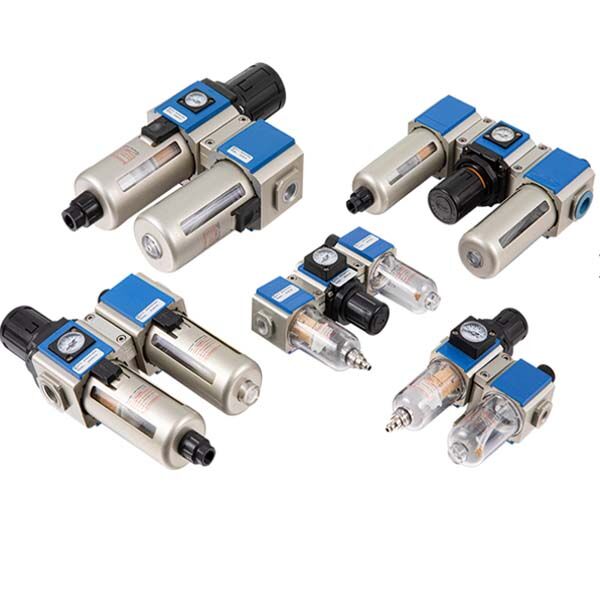

AIRTAC type G series pneumatic FRL GC
AIRTAC type G series pneumatic FRL GC
Additional information
| Working Media | Air |
|---|---|
| Operating Temperature | 5-60℃ |
| Working Pressure | 1.5-9bar |
| Material | Aluminium alloy |
Product Details:
AIRTAC type G series pneumatic FRL, GC200, GC300, GC400 air source treatment.air filter regulator lubrication combination units.
Product Description:
1. Quick and reliable mounting clamps make it convenient to install and use.
2. The performance of pressure adjustment is reliable with high precision.
3. The efficiency of eliminating moisture and solid grain is high.
4. Three drain types are available: manual drain, semi-auto drain, and automatic drain.
2. The performance of pressure adjustment is reliable with high precision.
3. The efficiency of eliminating moisture and solid grain is high.
4. Three drain types are available: manual drain, semi-auto drain, and automatic drain.
Ordering code:
| MODEL: | GC300-10 | |||
| G | C | 300 | _ | 10 |
| Series code | Function | Body size | Port size | |
| F. R.L | 200 | 06: 1/8 | ||
| combination | 300 | 08: 1/4 | ||
| 400 | 10:3/8 | |||
| 15: 1/2 | ||||
Product Specification:
| Model | GC200-06 | GC200-08 | GC300-08 | GC300-10 | GC300-15 | GC400-10 | GC400-15 | |
| Working medium | Air | |||||||
| Port Size | PT1/8 | PT11/4 | PT1/4 | PT3/8 | PT1/2 | PT3/8 | PT1/2 | |
| Filtration | 40 μ or 5 μ | |||||||
| Adjustable pressure range | 0.15 ~ 0.9 MPa | |||||||
| Maximum working pressure | 1.0 MPa | |||||||
| Proof Pressure | 1.5 MPa | |||||||
| Operating Temperature Range | 5 ~ 60 ℃ | |||||||
| The capacity of the Filter Cup | 10 CC | 40 CC | 80 CC | |||||
| The capacity of Oil Cup | 25 CC | 75 CC | 160 CC | |||||
| Recommended Lubrication | ISO VG 32 or Same Grade | |||||||
| Weight | 580 g | 1300 g | 2358 g | |||||
| Components | Filter | GF 200-06 | GF 200-08 | GF 300-08 | GF 300-10 | GF 300-15 | GF 400-10 | GF 400-15 |
| Regulator | GR 200-06 | GR 200-08 | GR 300-08 | GR 300-10 | GR 300-15 | GR 400-10 | GR 400-15 | |
| Lubricator | GL 200-06 | GL 200-08 | GL 300-08 | GL 300-10 | GL 300-15 | GL 400-10 | GL400-15 | |
Overall Dimension:
