AIRTAC type Pneumatic FRL AFC2000
AIRTAC type Pneumatic FRL AFC2000
Additional information
| Operating Temperature | 5-60℃ |
|---|---|
| Max. Pressure resistance | 10 bar |
| Port Size | 1/4" BSP |
| Color | Black, Micky white |
Product Details:
Air Source Treatment Unit(FR.L), Air filter regulator&Lubricator, Pneumatic components AFC2000
AFC type FRL is lighter and more economical compared to other types.
Model name: AFC2000

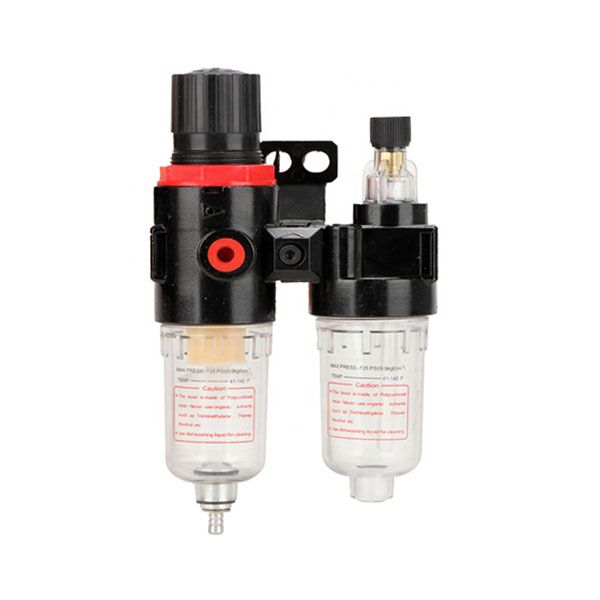

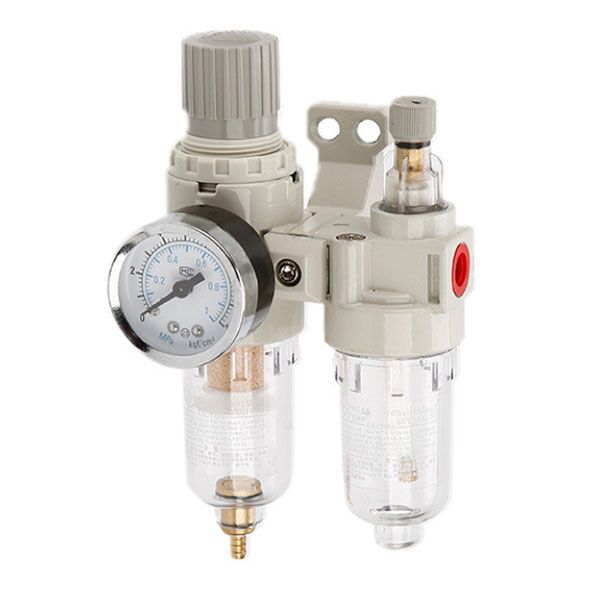

Body Color: White & Black
Parameters:
| Model | AFC2000
| BFC2000
| BFC3000
| BFC4000
| |
| Port size RC(PT) | 1/4” | 1/4” | 3/8” | 1/2” | |
| Flow rate(L/Min) | 750 | 1000 | 1500 | 3000 | |
| Fluid | Air | ||||
| Proof pressure | 8.5kgf/cm² | ||||
| Max. operating pressure | 10.0kgf/cm² | ||||
| Ambient & fluid temperature | 5~60°C | ||||
| Nominal filtration rate | 25µm | ||||
| Adjustable Pressure range | 0.15-0.85Mpa | ||||
| Pressure gauge | Y40-01 | Y50-2 | Y50-2 | Y50-2 | |
| Main parts material | Body | Aluminum alloy Pneumatic Hose | |||
| Bowl | PC Pneumatic Cylinder Pneumatic Hose | ||||
| Bowl guard | AFC2000:without BFC2000-BFC4000:with iron | ||||
Dimension:
