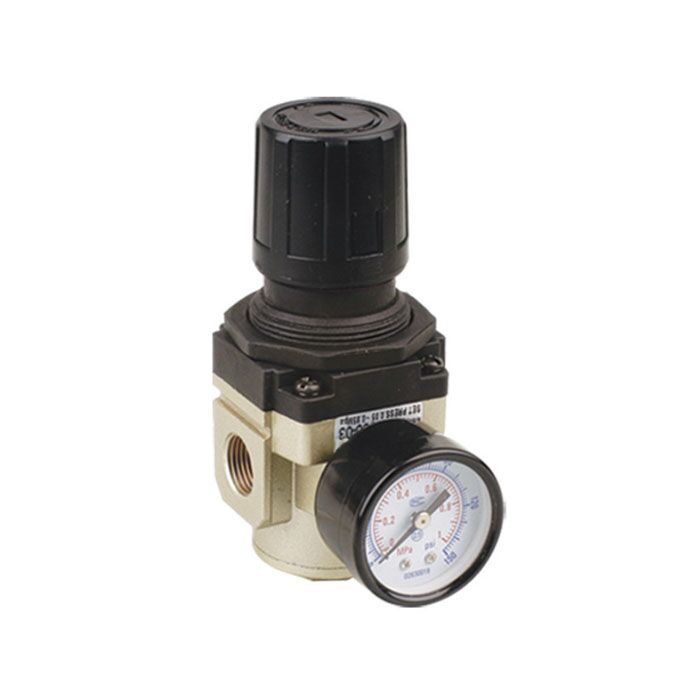

AR series SMC type air regulator
AR series SMC type air regulator
This type of air regulator has the Characteristics of Classical design, durable air control design, Energy saving, and environmental protection with a large low rate, safety, and precision. Can work at the low pressure, smartness for on and off, good seal performance.
Additional information
| Operating Temperature | 5-60℃ |
|---|---|
| Max. Pressure resistance | 1.5Mpa |
| Working Pressure | 0-8.5 bar |
| Material | Aluminum alloy |
Product Details:

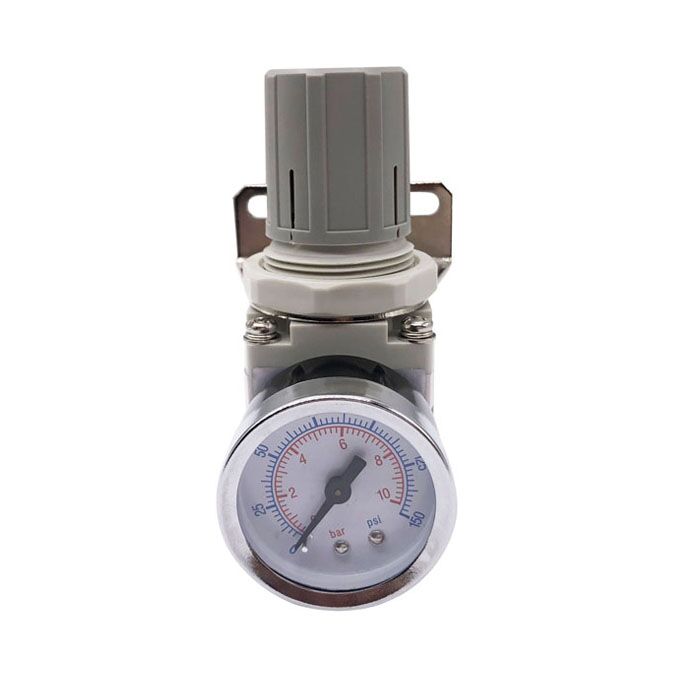

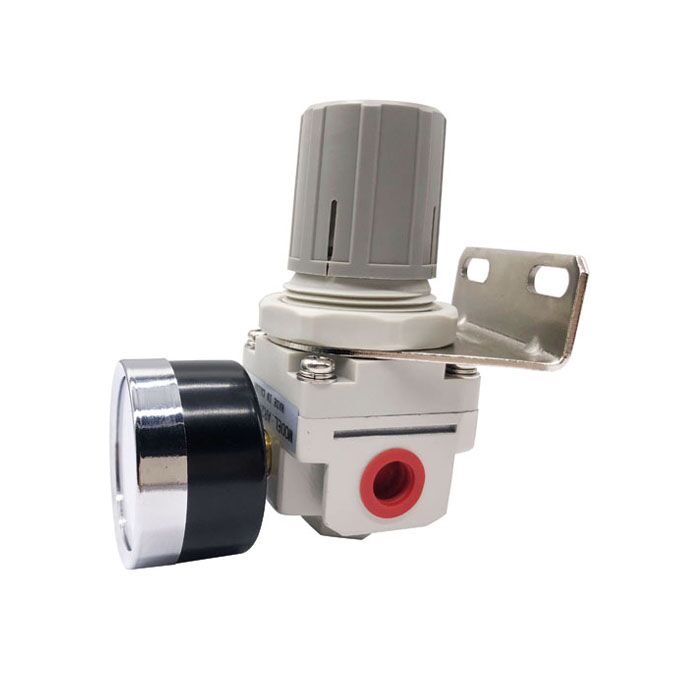

AR2000-02/AR3000-02/AR3000-03/AR4000-04/AR4000-06/AR5000-06/AR5000-10 SMC type Air Regulator with pressure gauge, Pneumatic Parts Air Source Treatment Tools Filter
Characteristics：
1.Classical design, durable air control design
2.Energy saving and environmental protection with a large low rate, safety, and precision
3.Can work at the low pressure, smartness for on and off, good seal performance
4.single action and double action types for your selection
5.Widely used in the food, machine, industry, abstention, calcification, printing, and another area
| Model | AR2000-01 | AR2000-02 | AR3000-02 | AR3000-03 | AR4000-03 | AR4000-04 | AR4000-06 | AR5000-06 | AR5000-10 |
| Port size | 1/8” | 1/4” | 1/4” | 3/8” | 3/8” | 1/2” | 3/4” | 3/4” | 1” |
| Flow rate (L/Min) | 550 | 550 | 2000 | 2000 | 4000 | 4000 | 6000 | 7000 | 7000 |
| Fluid | Air | ||||||||
| Proof pressure | 1.5Mpa(15.3kgf/cm²) | ||||||||
| Max. operating pressure | 1.0Mpa(10.2kgf/cm²) | ||||||||
| Ambient & fluid temperature | 5~60°C | ||||||||
| Adjustable Pressure range | 0.05~0.85Mpa | ||||||||
| Pressure gauge | Y40-01 | Y50-02 | |||||||
| Body material | Aluminum alloy | ||||||||
