BFC Air compressor regulator
BFC Air compressor regulator
Additional information
| Model | |
|---|---|
| Color | Black, Micky white |
| Material | Aluminum alloy |
| Operating Temperature | 5-60℃ |
| Max. Pressure resistance | 10 bar |
Product Details:
Brief Introduction:
Pneumatic FRL Units (FR.L), which are Air preparation units filter regulator and lubrication combination, also named Air Source Treatment Units and Pneumatic filter regulator BFC series, or other similar name.
Applicable Industries: Air compressor regulators, Building Material Shops, Manufacturing Plants, Machinery Repair Shops, Garment Shops, etc. (You can use it anywhere that need to remove water or water vapor)

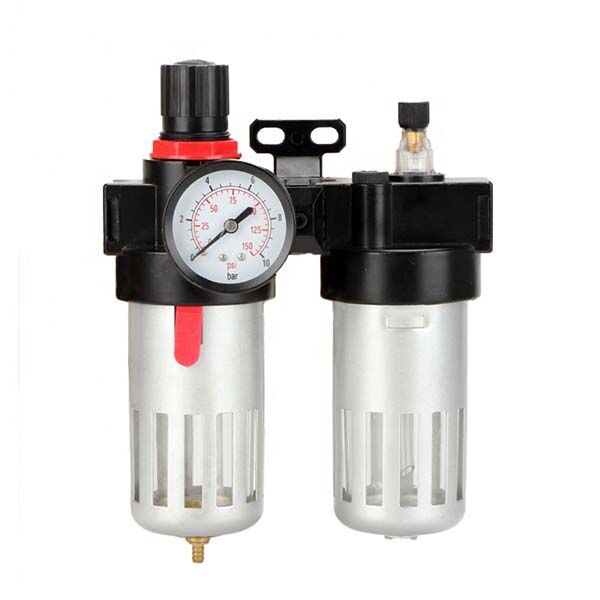

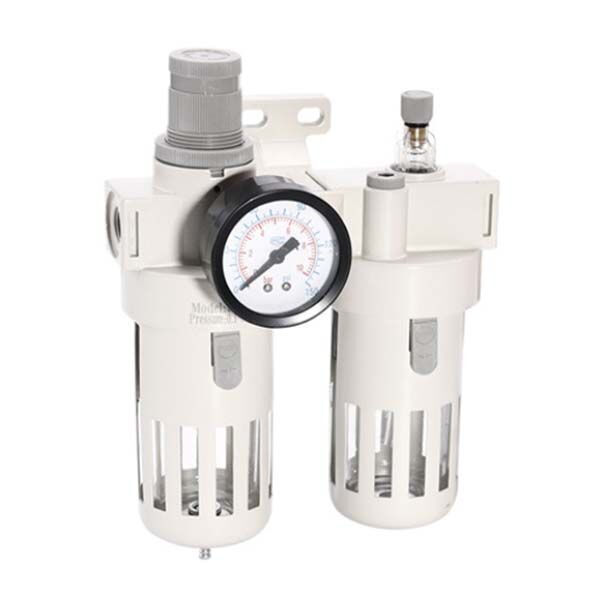

Model name: BFC2000(1/4″)/BFC3000(3/8″)/BFC4000(1/2″)
Body Color: White & Black
Gauge: Can be customized
This AIRTAC model, and have a similar design with them. Related products can check other FRL or contact us.
Description:
- The air source treatment unit includes a filter regulator and lubricator, It is in standard modular design and can freely separate and combine.
- Filter adopts novel vane design with high division efficiency and differential pressure discharge device. It can discharge water automatically.
- The regulator valve adopts a balanced inlet structure with the advantages of stable pressure, high precision, and quick reaction.
- Lubricator is an element that can provide good lubrication for a pneumatic system, with a novel structure and easy adjustment of oil drip.
Product Specification:
| Model | AFC2000 | BFC2000 | BFC3000 | BFC4000 | |
| Port size RC(PT) | 1/4” | 1/4” | 3/8” | 1/2” | |
| Flow rate(L/Min) | 750 | 1000 | 1500 | 3000 | |
| Fluid | Air | ||||
| Proof pressure | 8.5kgf/cm² | ||||
| Max. operating pressure | 10.0kgf/cm² | ||||
| Ambient & fluid temperature | 5~60°C | ||||
| Nominal filtration rate | 25µm | ||||
| Adjustable Pressure range | 0.15-0.85Mpa | ||||
| Pressure gauge | Y40-01 | Y50-02 | Y50-02 | Y50-02 | |
| Main parts material | Body | Aluminum alloy Pneumatic Hose | |||
| Bowl | PC Pneumatic Cylinder Pneumatic Hose | ||||
| Bowl guard | AFC2000:without BFC2000-BFC4000:with iron | ||||
