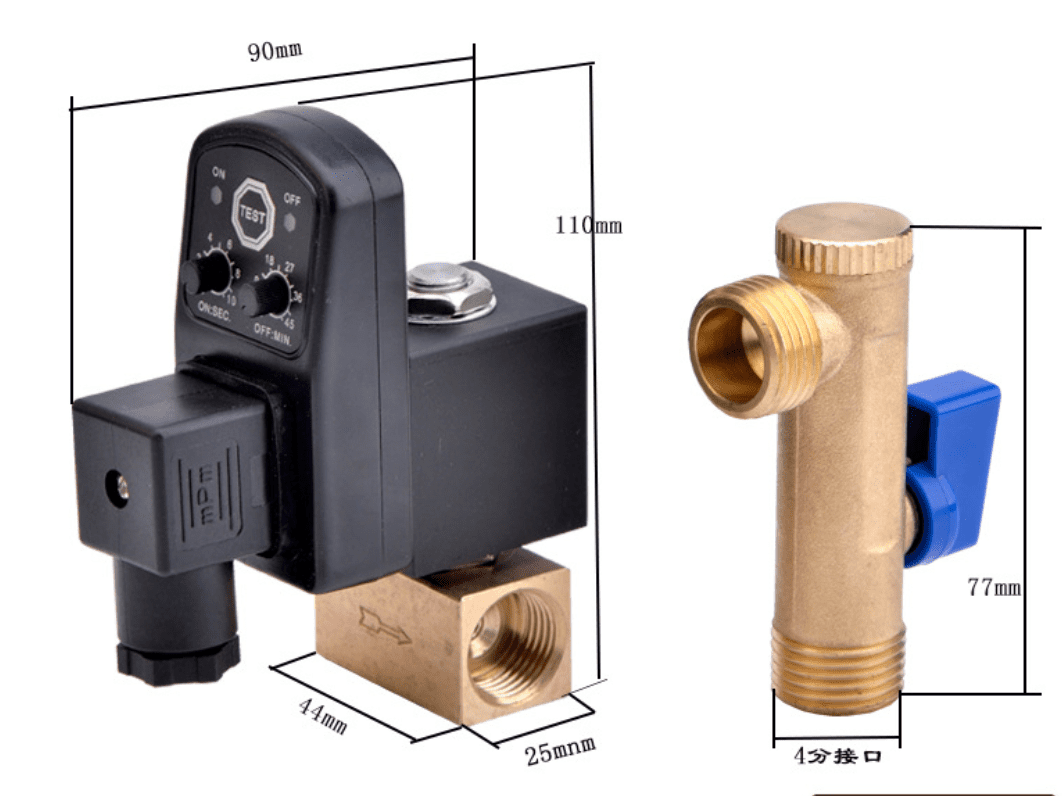

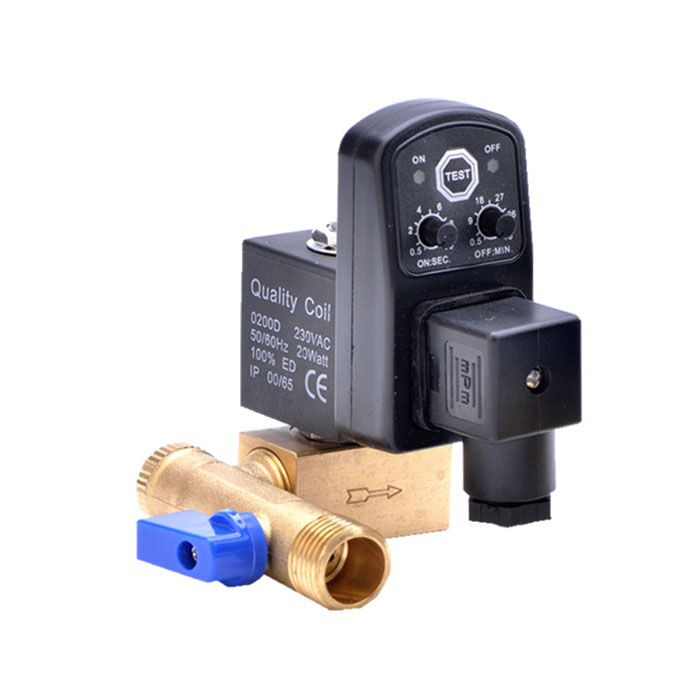

OPT-A Automatic Drain Valve

OPT-A Automatic Drain Valve

The automatic drain can be used in compressed air equipment and pipelines to automatically discharge the internal condensed water out of the compression system at any time to keep the air clean.

Additional information

Model code

OPT-B, OTB-A

Material

Brass

Working Media

Water

Port Size

1/2"

Product Details:

OPT-A / OPT-B Timed Drain Valve, Pneumatic Air Compressor, Automatic Drain Valve for Air Compressor

OPT-A  and OPT-B 1/2” Brass Body Mechanical Water Pneumatic Solenoid Valve Electric Timer Auto Drain Valve

Specifications:

Model OPT-A OPT-B OPT-T
Seperated no yes coil
Port Size 1/2”
Max pressure 1.6 Mpa
Power supply(voltage)      24 to 240V AC/DC 50HZ/60HZ
Ambient temperature -5~80℃
Voltage range ±10%
Protection class IP65
Connection type DIN43650A
Voltage AC220V, AC110V, DC24V
