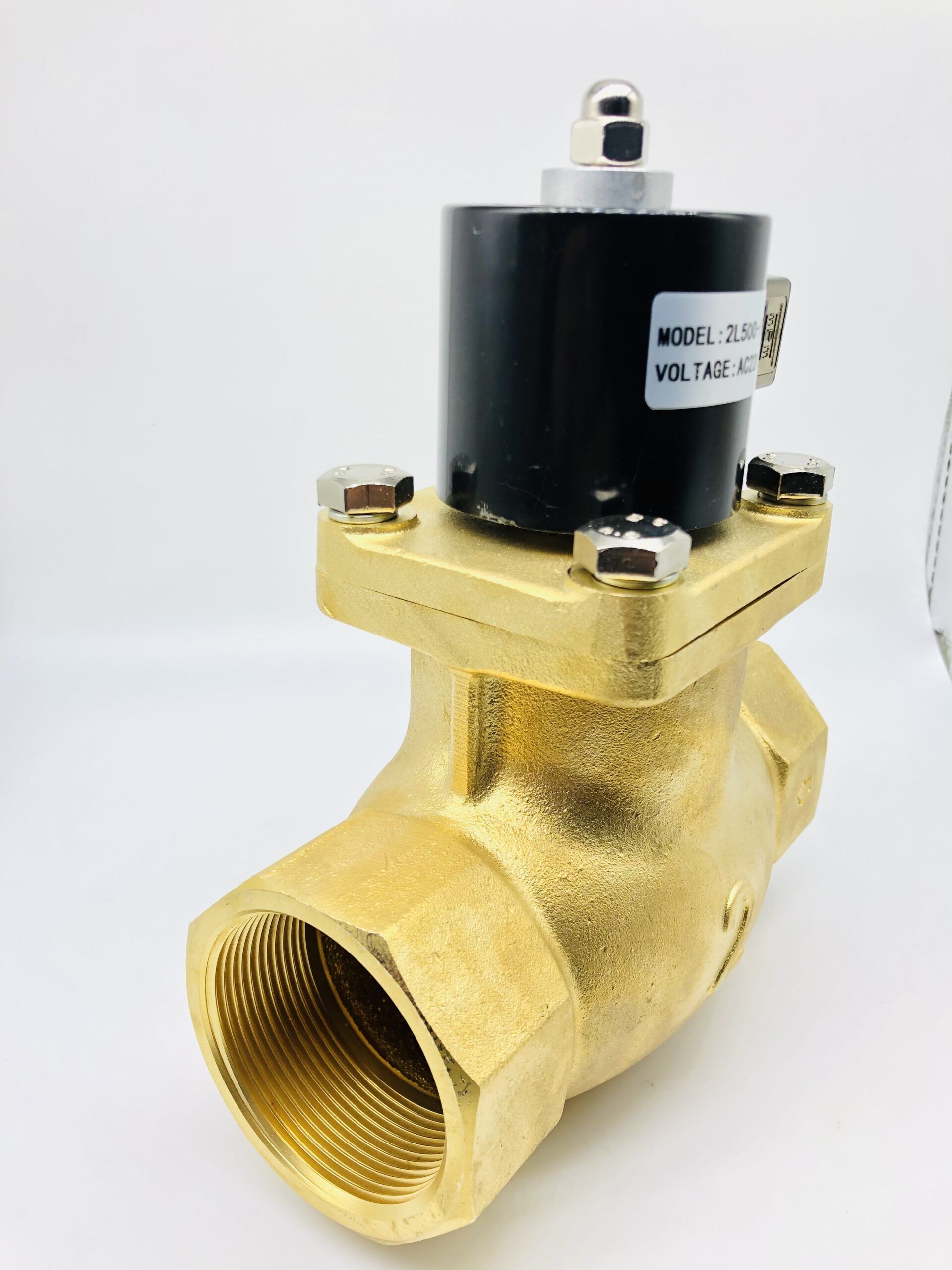

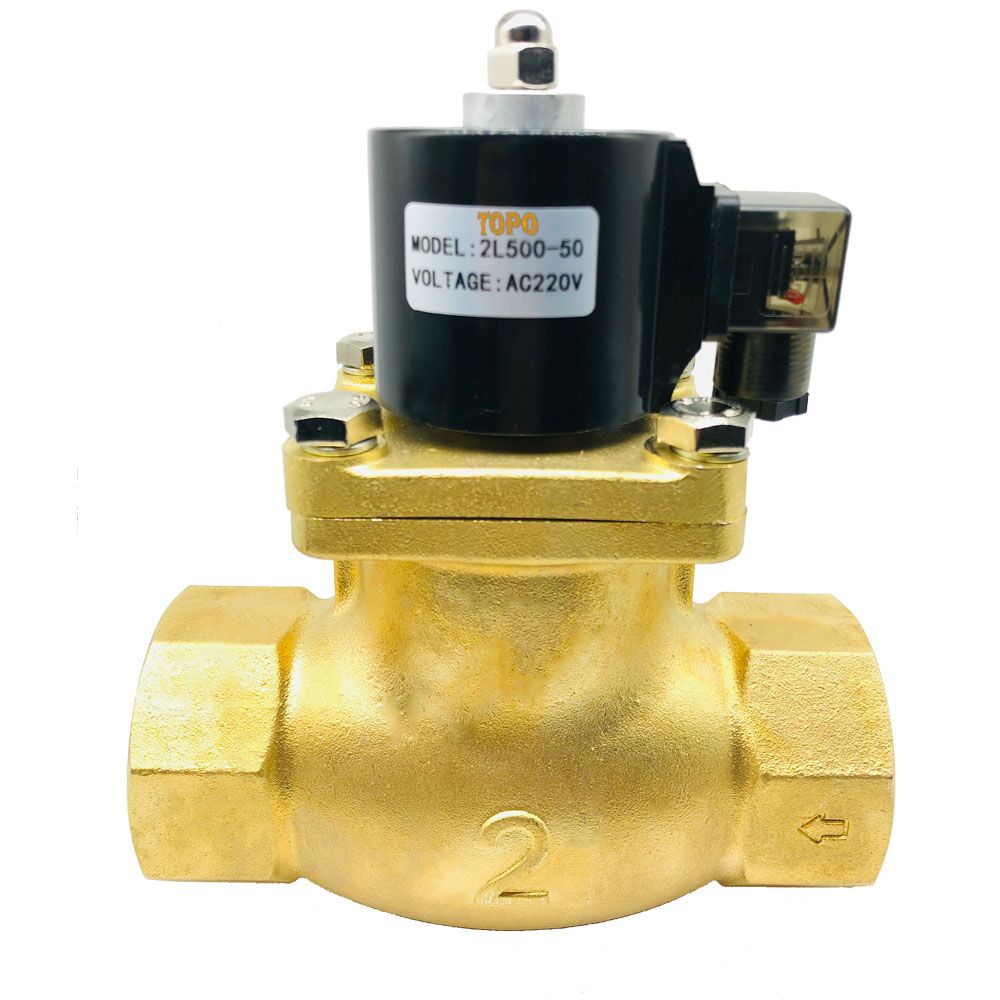

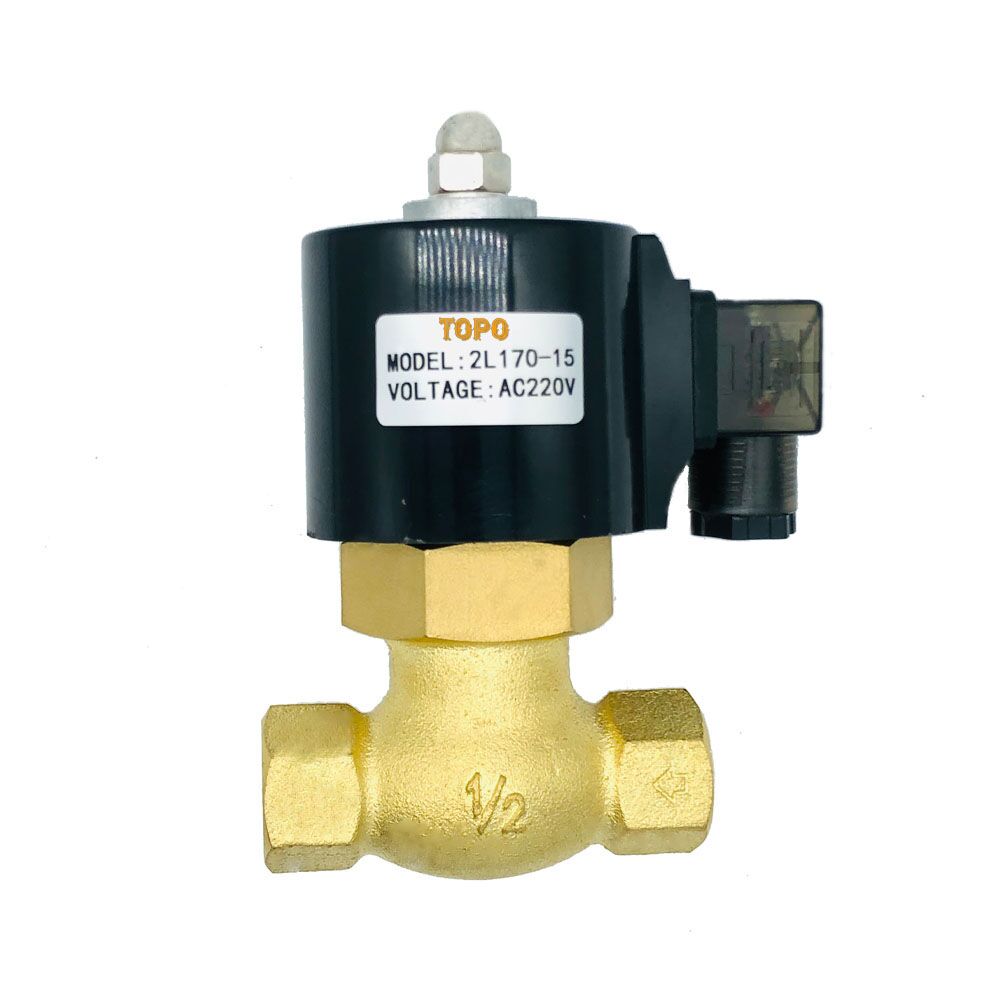

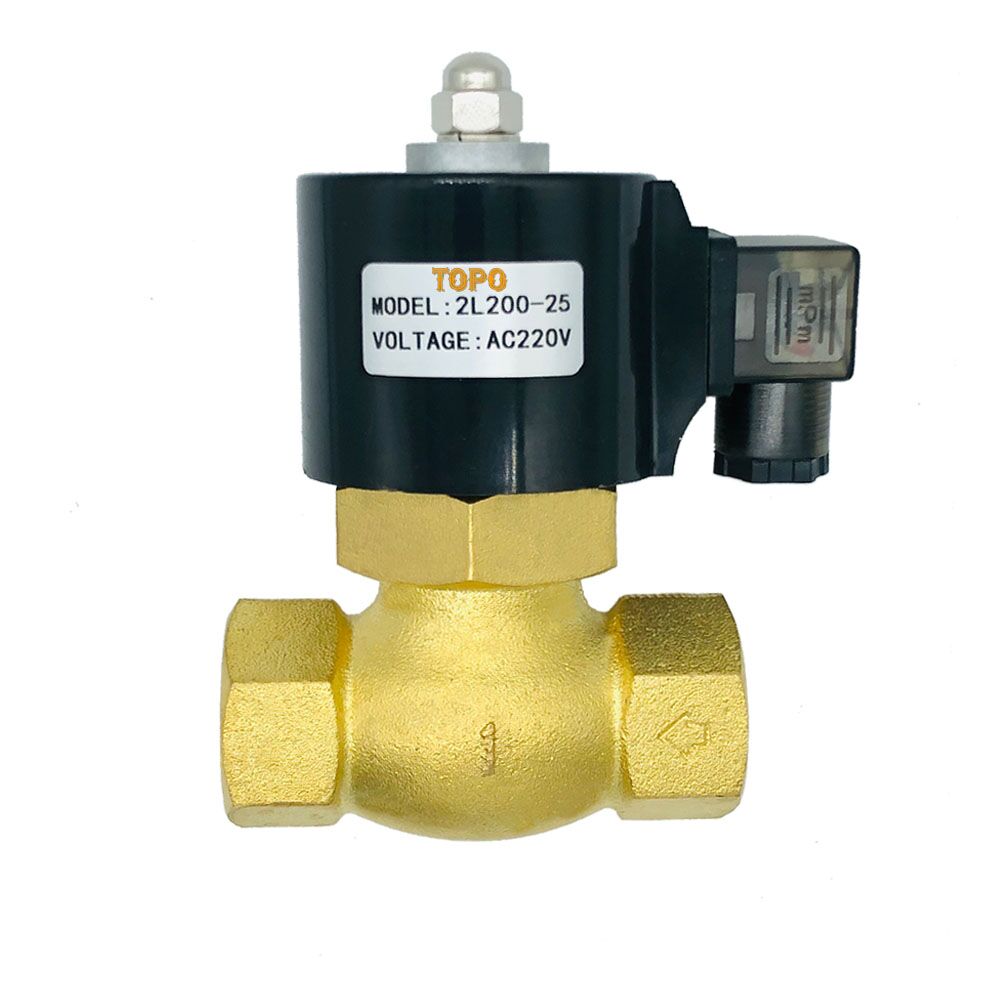

2L(US) Series 2 Position 2 Way Solenoid Valve
2L(US) Series 2 Position 2 Way Solenoid Valve
2L series 2/2 pilot steam solenoid valves, whose thread sizes are from 3/8″ to 2″, can bear the high temperature of 180 Centi degree. They are called for the steam valve because of the control of steam.
Additional information
Product Details:
2L(US) Series 2 Position 2 Way High-Temperature Steam solenoid valve
| Model | 2L170-10 | 2L170-15 | 2L170-20 | 2L200-25 | 2L300-35 | 2L300-40 | 2L500-50 |
| Working Medium | Air, Water, Oil | ||||||
| Acting Type | Pilot Type | ||||||
| Control Style | Normal Close | ||||||
| Orifice | 17mm | 22mm | 30mm | 50mm | |||
| CV Value | 4.8 | 12 | 20 | 48 | |||
| Joint Size | G3/8” | G1/2” | G3/4” | G1” | G1-1/4” | G1-1/2” | G2” |
| Medium Viscidity | ≤20CST | ||||||
| Working Pressure | 0.1-1.5Mpa | ||||||
| MAX.Pressure | 2.25Mpa | ||||||
| Working Temperature | -5°C-180°C | ||||||
| Voltage Range | ±10% | ||||||
| Valve Body | Brass | ||||||
| Seal material | PTFE | ||||||
How to Order:
