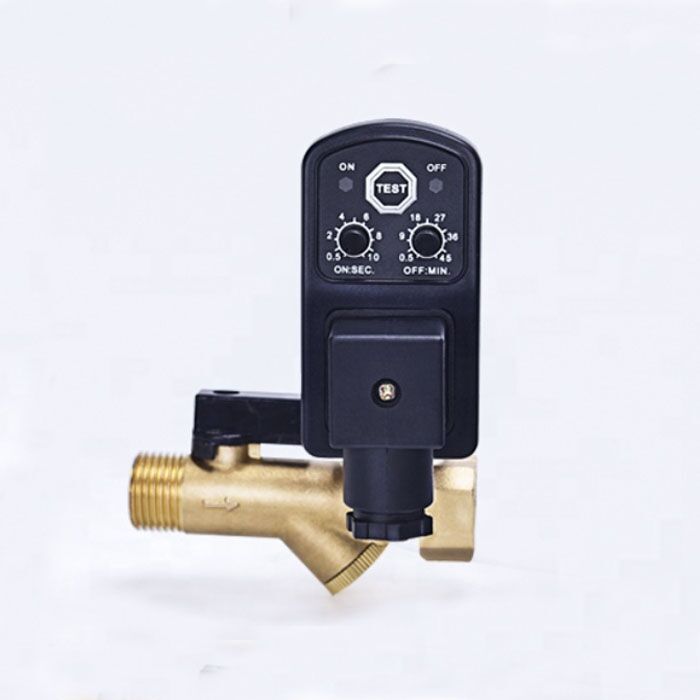

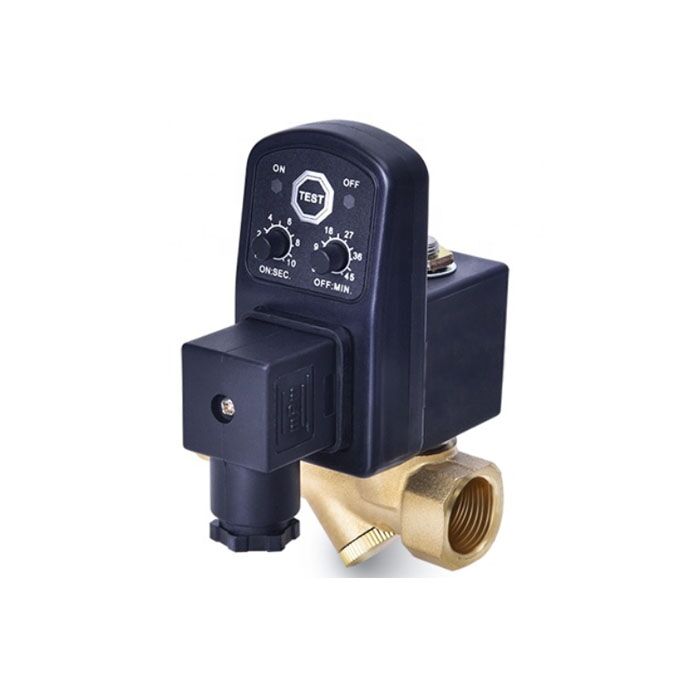

OPT-B Auto Drain Valve
OPT-B Auto Drain Valve
This type of Auto drain valve is widely used in filters, separators, dryers, gas tanks, drip legs, and other compressed air system components.
Additional information
| Model code | OPT-B |
|---|---|
| Material | Brass |
| Weight | 0.6kg |
| Working Pressure | 1-16bar |
Product Details:
2/2 Way Water Auto Drain Solenoid Valve With Timer OPT-B Jointed body.Electronic Automatic Drain Valve.
A drain valve is a valve that simulates an electronic circuit solid-state electronic timer and solenoid valve to match the timing of the realization of the compressed air system condensate automatic discharge. High voltage electron drain valve is widely used in filters, separators, dryers, gas tanks, drip legs, and other compressed air system components, discharge time and interval can be adjusted according to different needs.
| Model | OPT-A | OPT-B | OPT-T | |
| Description | Separated | Jointed | Timer | |
| Port Size | 1/2” | |||
| Pressure range | 0.05-0.85 Mpa | |||
| Proof pressure | 1.6 Mpa | |||
| Power supply(voltage) | 24 to 240V AC/DC 50HZ/60HZ | |||
| Ambient temperature | -5~80℃ | |||
| Voltage range | ±10% | |||
| Protection class | IP65 | |||
| Connection type | DIN43650A | |||
| Voltage | AC220V 50/60HZ | |||
| The highest pressure | Normally open | 8 kgf/cm2 | ||
| Normally closed | 10kgf/cm2 | |||

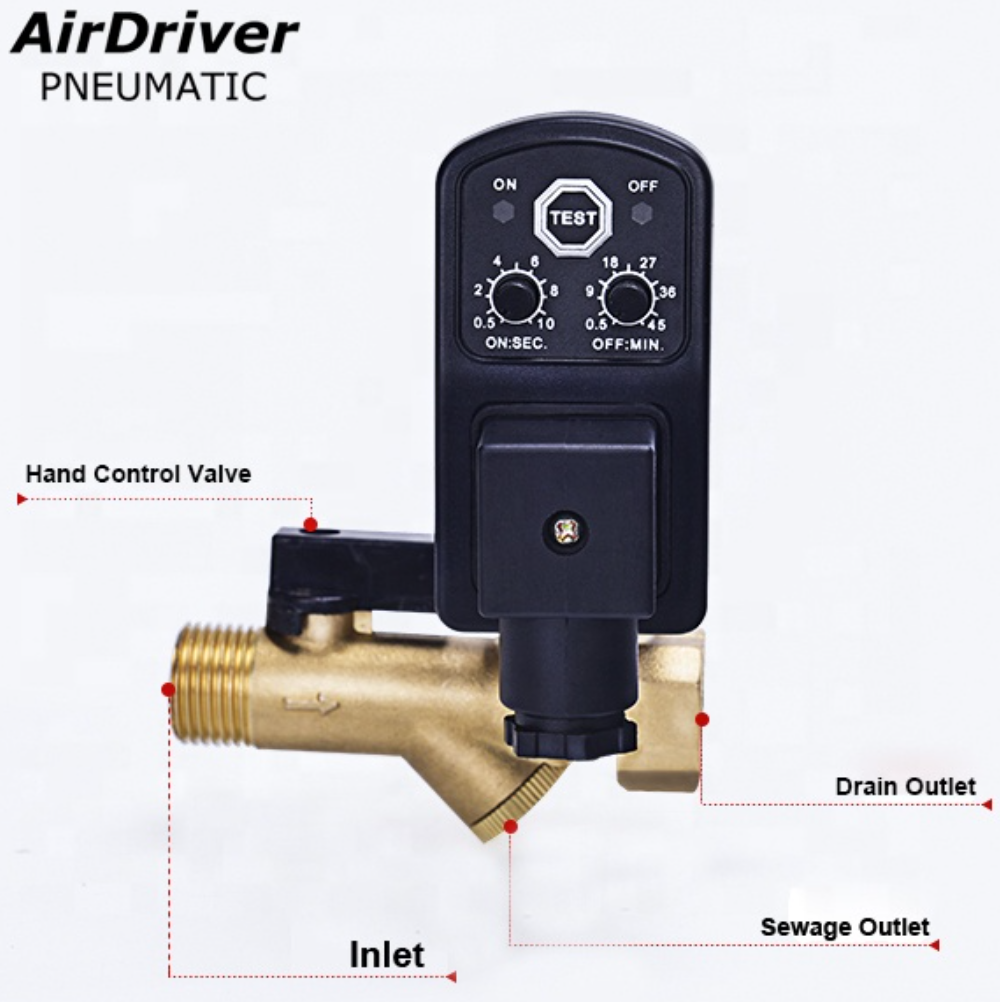

Attention: This timing automatic drainage valve is not recommended for sewage discharge or situations with more particles, there is an arrow on the solenoid valve body indicating the flow direction, the reverse installation can not work. In addition, please pay attention to waterproofing and matching voltage.
