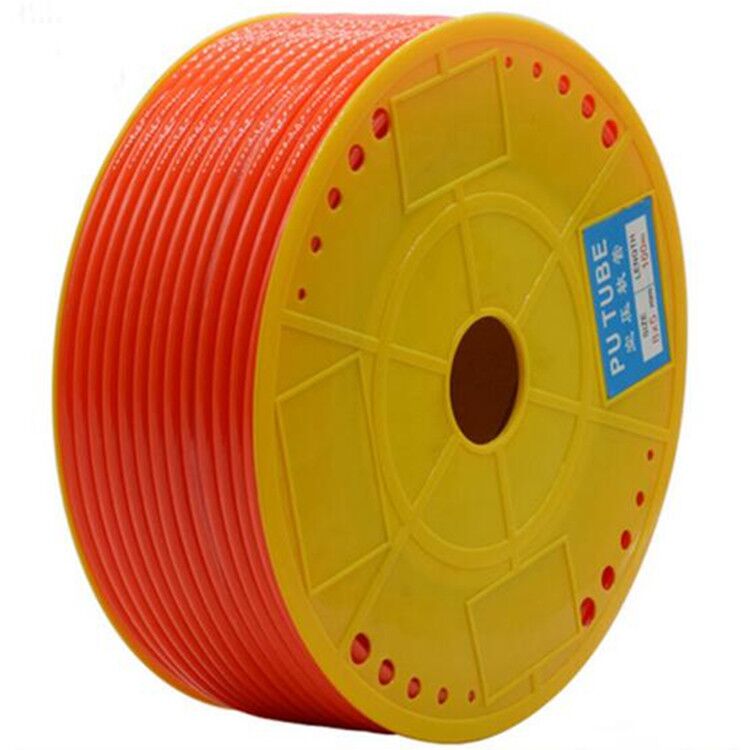

Air PU Tube
Air PU Tube
PU tubes are widely used in Pneumatic Tools; Instruments,Mechanical Gas Pipeline; Laboratory Automation Equipment; General Industrial Water And Gardening.
Additional information
Product Details:

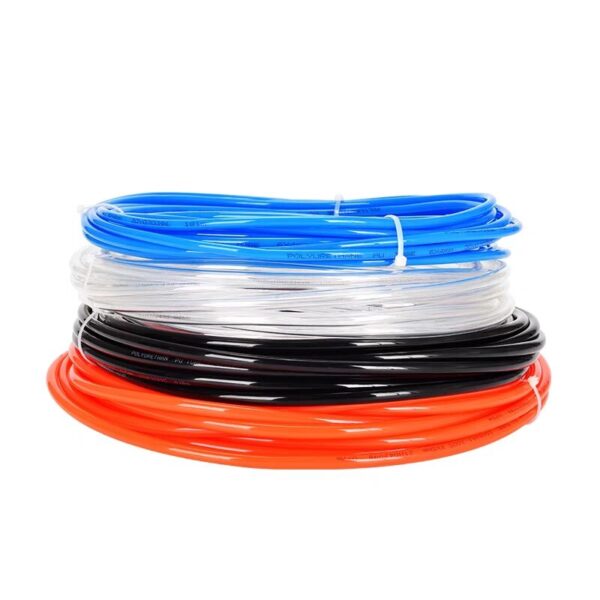

Pneumatic PU TUBE/Air PU hose is known for its outstanding chemical, abrasion, impact, and moisture resistance and dimensional stability. They are widely used in Pneumatic Tools; Instruments,Mechanical Gas Pipeline; Laboratory Automation Equipment; General Industrial Water And Gardening.
How to order:
| PU | 8 | * | 5 | / | 100M | C |
| Series | Size | / | Length | Colour | ||
| Polyurethane tube | Outside diameter | * | Intside diameter | / | R-red | |
| 4: 4mm | * | 2.5: 2.5mm | 200M | BL-blue | ||
| 6: 6mm | * | 4: 4mm | 200M | TR-transparent | ||
| 8: 8mm | * | 5: 5mm | 100M | BK-black | ||
| 10: 10mm | * | 6.5: 6.5mm | 100M | Y-yellow | ||
| 12: 12mm | * | 8: 8mm | 100M | |||
| 14: 14mm | * | 10: 10mm | 100M | |||
| 16: 16mm | * | 12: 12mm | 100M | |||
Specification
| Model | PU4*2.5 | PU6*4 | PU8*5 | PU10*6.5 | PU12*8 | PU14*10 | PU16*12 |
| Fluid | Air | ||||||
| Operating pressure | 0-1.0MPA(0~10kgf/cm²) | ||||||
| Ambient&fluid temperature | -20~60℃ | ||||||
| Tube O.D (mm) | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| Tube I.D (mm) | 2.5 | 4 | 5 | 6.5 | 8 | 10 | 12 |
| Standard Length (m) | 200 | 200 | 100 | 100 | 100 | 100 | 100 |
| Broken pressure(kgf/cm²) | 10 | 24 | 24 | 24 | 24 | 24 | 24 |
