Additional information
| Max. Pressure resistance | 10 bar |
|---|---|
| Working Pressure | 0-8.5 bar |
| Working Media | Air, Gas, Oil |
| Operating Temperature | -5 – 80℃ |
Product Details:

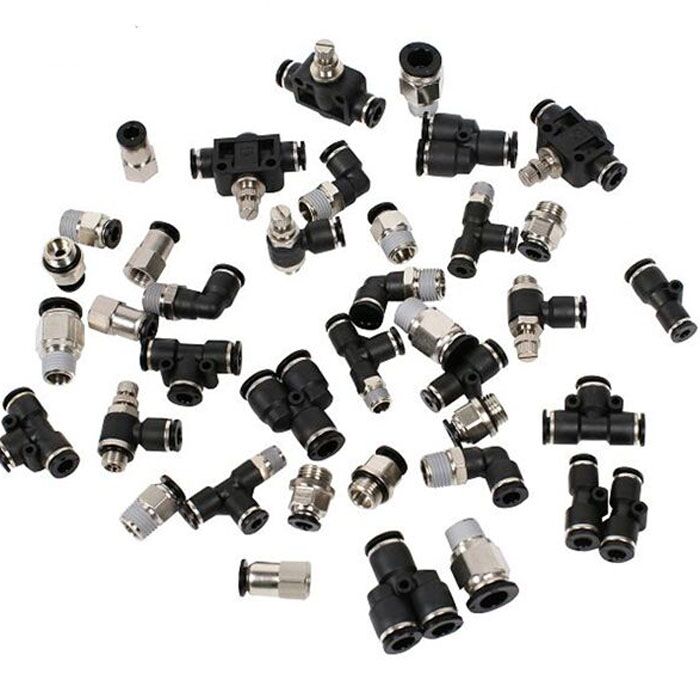

Air fittings/Push-in fittings/Pneumatic fittings /Air connector/Pneumatic accessories are used widely in almost all automatic devices. Although they are not big parts, they play an important role in connecting all pneumatic components.
All models are available:

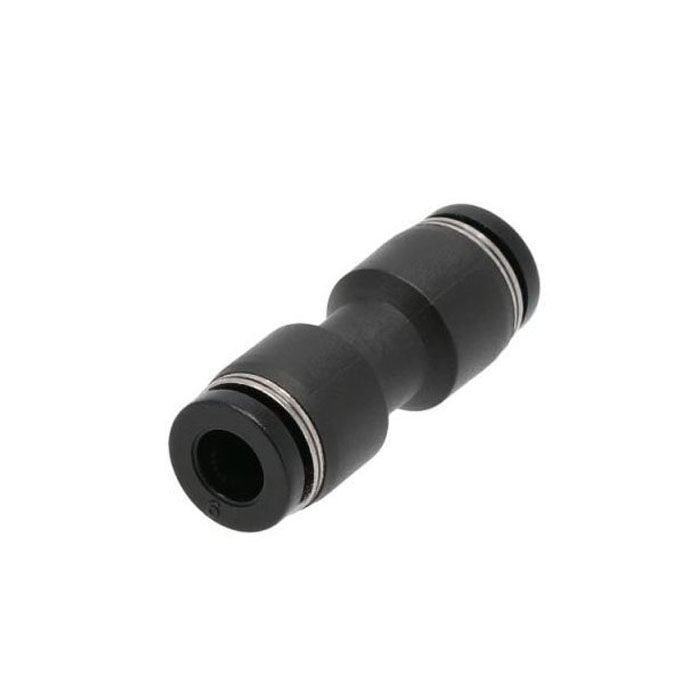

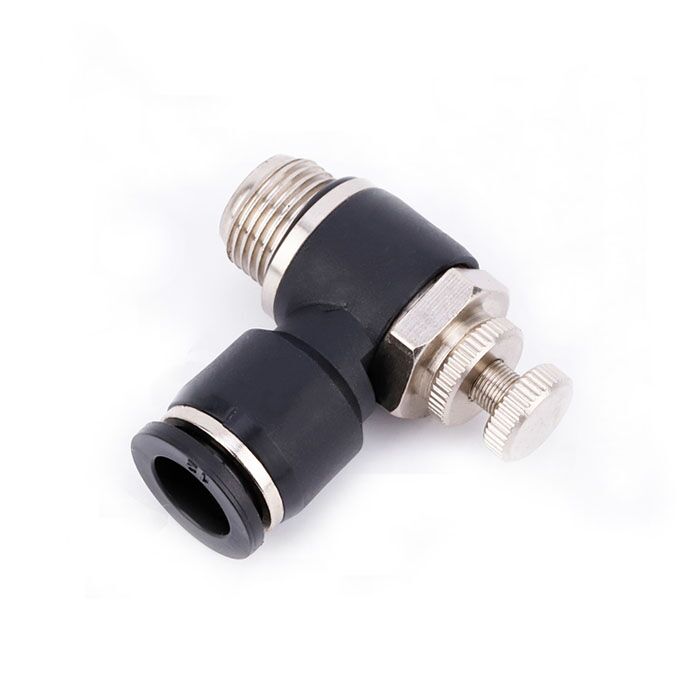

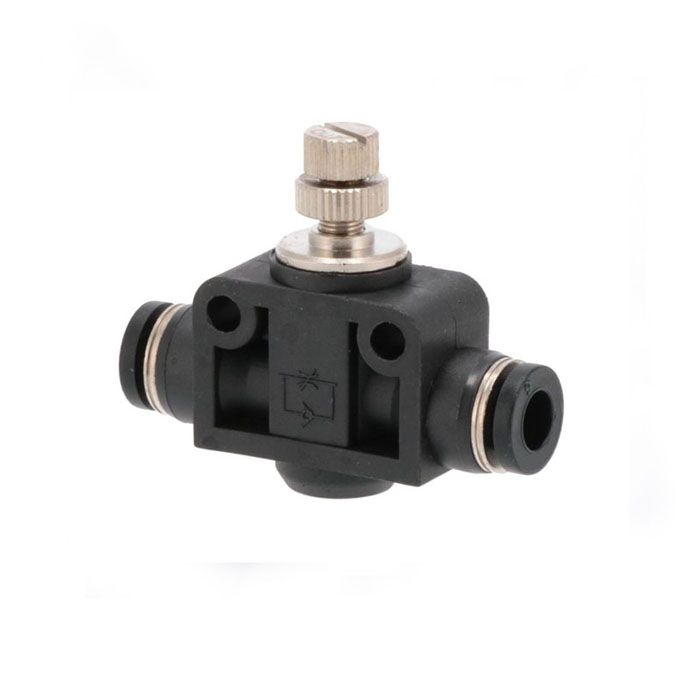

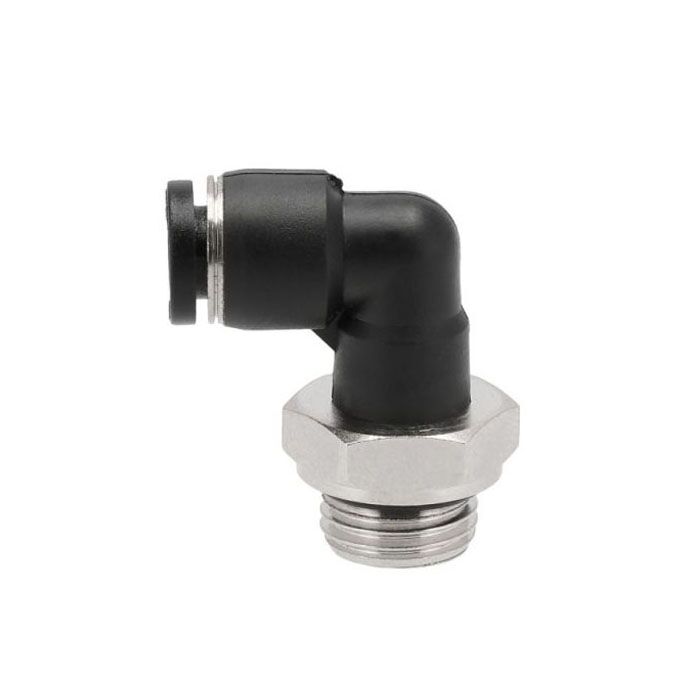

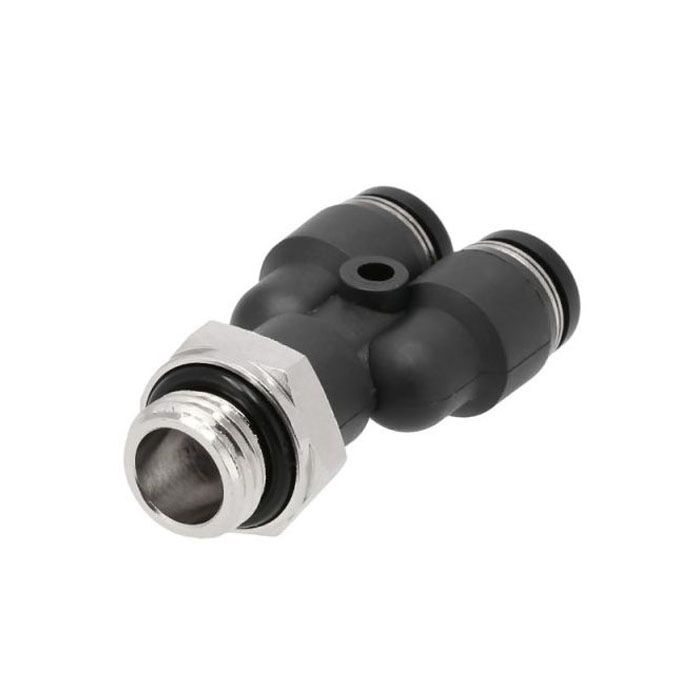

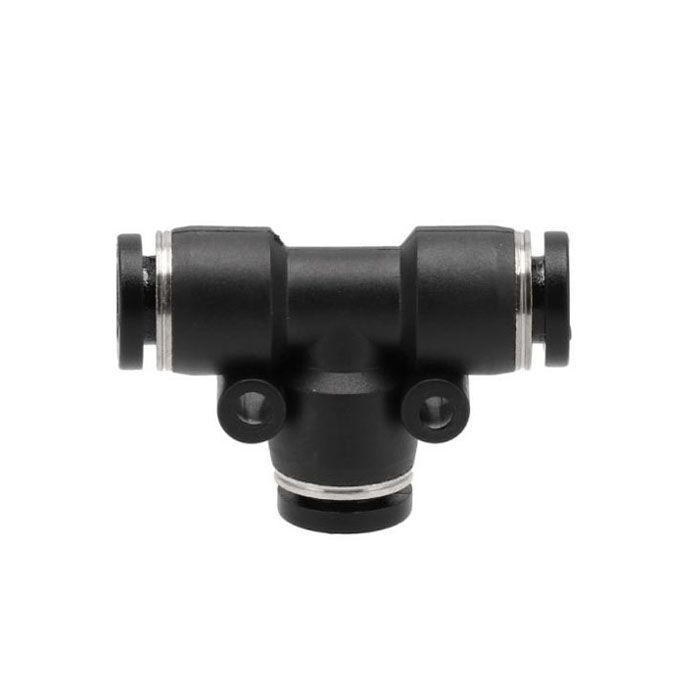

PC,PL,PCF,PLF,PH,PHF,PB,PD,PX,SL(SC),LSA,PU,PUG,PE,PEG,PV,PY,PK,PKG,PM,PZA…

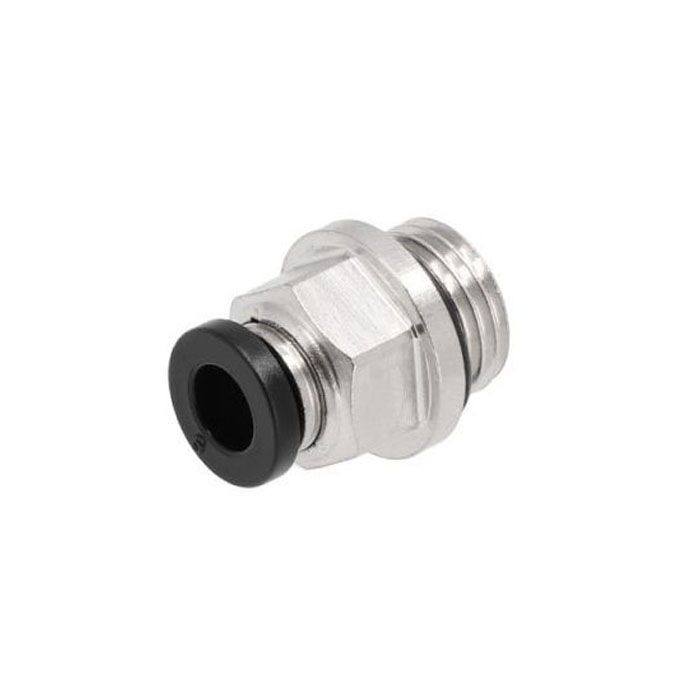

Below is an example of the detail of PC straight air fitting.
How to order:
Ordering Code:
PC 8 – 02
Model Port size Thread size
PC 4mm M5: M5
6mm 01: 1/8”
8mm 02: 1/4”
10mm 03: 3/8”
12mm 04: 1/2”
14mm
16mm
Model:
| PC4-M5 | PC10-01 | For example PC6-01(G)(1)(2)(3)(4) | ||
| PC4-01 | PC10-02 | (1)Model: PC | ||
| PC4-02 | PC10-03 | (2) Tube OD(mm) 6mm | ||
| PC4-03 | PC10-04 | Metric: 3/4/5/6/7/8/9/10/11/12/13/14/15/16 | ||
| PC6-M5 | PC12-01 | English: 1/8” 5/32” 3/16” 1/4” 5/16” 3/8” 1/2” | ||
| PC6-01 | PC12-02 | (3)Thread Size | ||
| PC6-02 | PC12-03 | Metric: M3/M5/M6/M8/M10/M12/M14/M16/M22 | ||
| PC6-03 | PC12-04 | English: 01:1/8” 02:1/4” 03:3/8” 04:1/2” | ||
| PC6-04 | PC14-03 | (4)Inch thread form: | ||
| PC8-01 | PC14-04 | Default: BSP(BSPP/G) | ||
| PC8-02 | PC16-02 | (PT): BSPT(R) | ||
| PC8-03 | PC16-03 | (N): NPT(Z) | ||
| PC8-04 | PC16-04 | |||
Specifications:
| Male Thread Size | BSP |
| Medium | Air – Water – Vacuum |
| Apply For | 8mm tube/hose |
| Applicable Tube | PU / PA / PE / PVC |
| BSP Thread Data | 1/8″ BSP thread———Thread Outside Diameter: 9.728mm 1/4″ BSP thread———Thread Outside Diameter: 13.157mm 3/8″ BSP thread———Thread Outside Diameter: 16.662mm 1/2″ BSP thread———Thread Outside Diameter: 20.955mm 3/4″ BSP thread———Thread Outside Diameter: 26.441mm 1″ BSP thread———–Thread Outside Diameter: 33.249mm |
| Cap color | Black,blue,white |
