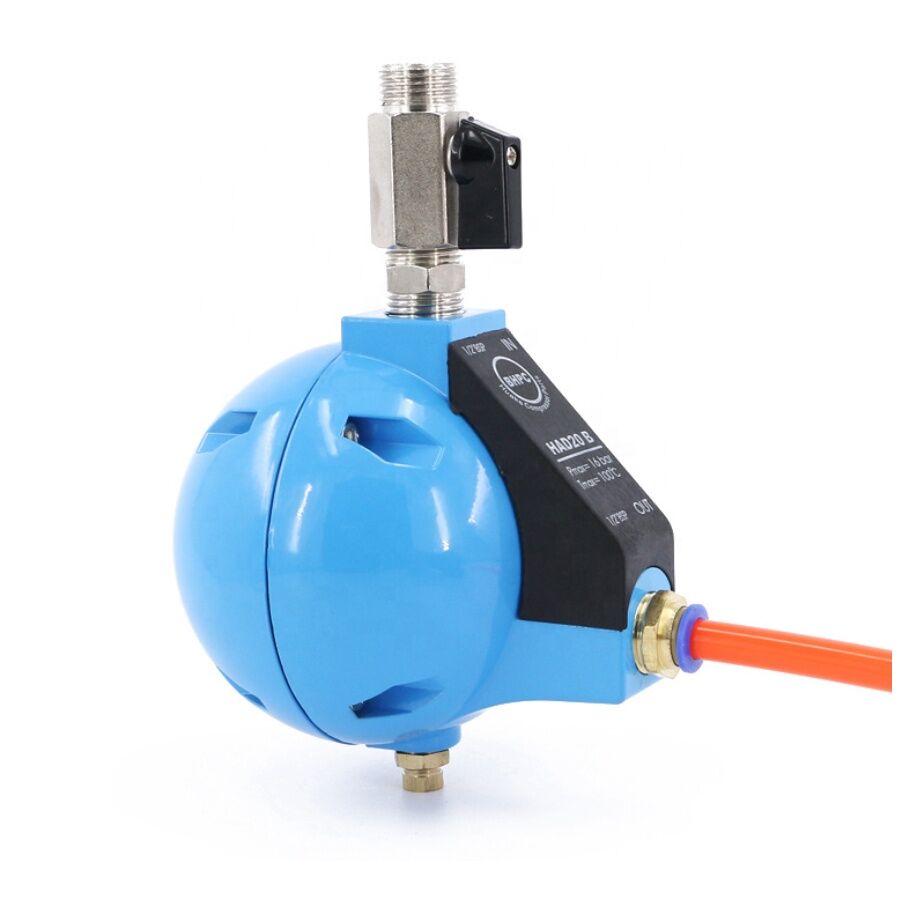

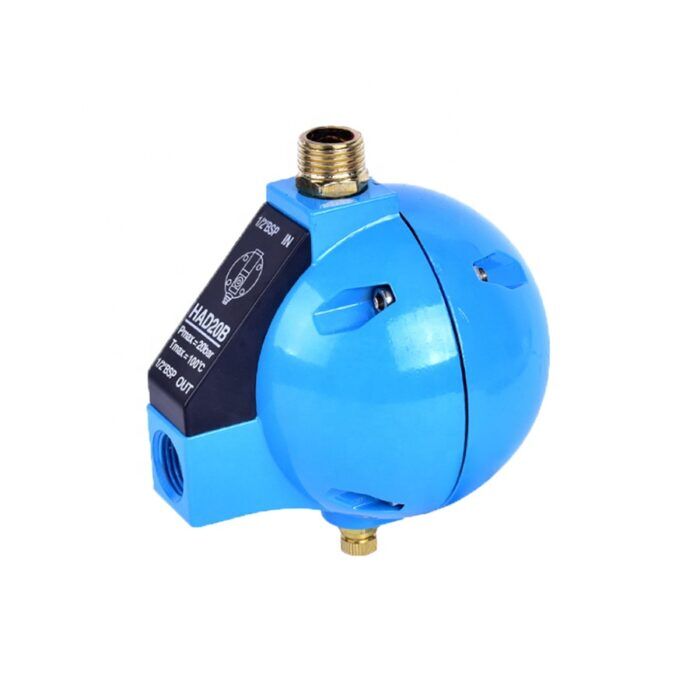

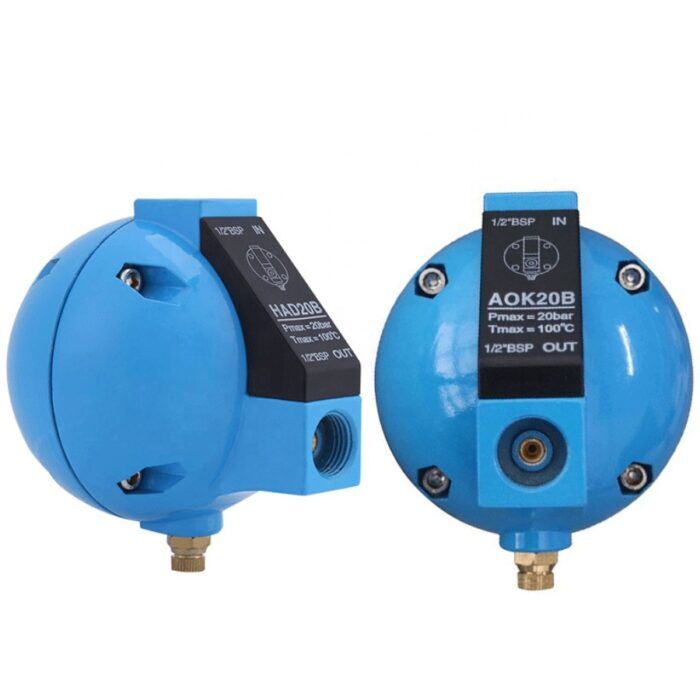

Automatic Water Integrate Electronic Timer Drain Valve for Air compressor, Floating ball type HAD20B

Electronic-drain valve is made of solid-state electronic time, setting, and solenoid valve, which can make the compressor condensates water to drain automatically. It is widely used in filter driers, oil/water segregator, refrigerant compressed air drying machines, drying machines, air compressor drip feed, and so on. The time of drain and interval can be adjusted according to different needs.

Specifications:

Model	Inlet/Outlet	Max. working pressure	Highest working temperature	Begin to emission	Largest emission capacity
HAD20B	Rc1/2″	16bar(kg/m3)	100℃	72-75ML	400L/M



ime interval (off)	0.5 to 45 minutes
Emission time (on)	0.5 to 10 seconds
Manual test button	switch
Power supply (voltage)	24 to 240V AC/DC 50/60Hz, 380VAC can be ordered
Maximum current consumption	4mA
Ambient temperature	-40°C to +60°C
Protection class	IP65
Shell material	flame retardent ABS plastic
Electrical connection	DIN43650A
LED light indicator	indicate the power on or off
Design standard	VDE 01 10C



Details:
