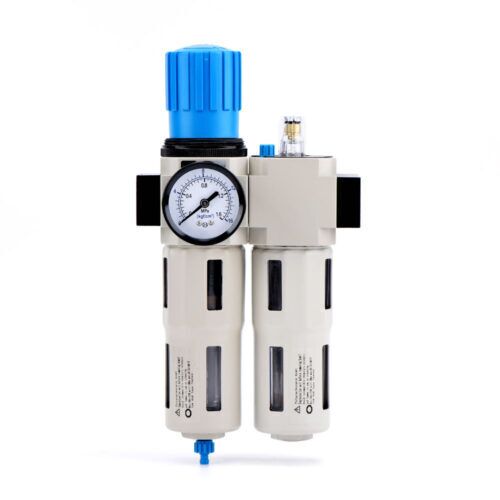

FRC type Pneumatic Air Preparation Units
FRC type Pneumatic Air Preparation Units
We have two series of this FESTO type air combination, MIDI and mini type. It is made by zinc not aluminium alloy like other type air combination, so its max pressure can reach 16 bar, much higher than others(8.5 bar), it is popular in some higher system.
Additional information
| Model code | FRC-01-MINI, FRC-02-MIDI, FRC-02-MINI, FRC-03-MIDI, FRC-03-MINI, FRC-04-MIDI |
|---|---|
| Material | Zinc |
| Color | Micky white |
| Working Media | Compressed air |
| Max. Pressure resistance | 16 bar |
Product Details:
We have two series of this FESTO type air combination, MIDI and MINI type. It is made by zinc not aluminium alloy like other type air combination,It’s Up to 12bar (1.2MPa) pressure regulation, much higher than others(8.5 bar), it is popular in some higher system.
Incoming compressed air flows from the input of the pressure regulator with the primary pressure, also called input pressure, to the valve seat. The pressure regulator controls the compressed air as it flows through the valve to the desired secondary pressure, also called the output pressure.
If your system does not require such high pressure, then you can choose other models.
|
Type
|
OR-MINI-1/4″
|
OR-MINI-3/8″
|
OR-MIDI-3/8″
|
OR-MIDI-40-1/2″
|
|
Port Size
|
1/8″ 1/4″
|
1/4″,3/8″
|
1/4″,3/8″
|
3/8″,1/2″
|
|
Fluid
|
Compressed Air
|
|||
|
Operating pressure range MPa
|
1.5-12bar
|
1.5-12bar
|
||
|
Max.Flow rate L/min
|
500
|
1700
|
3500
|
11500
|
|
Ambient temperture ºC
|
-10-60
|
|||
|
Filter precision
|
5um or 40um
|
|||
|
Structure
|
Overflow type
|
|||
|
Guard cup
|
–
|
Yes
|
Yes
|
Yes
|
