AC series three points Pneumatic FRL
AC series three points Pneumatic FRL

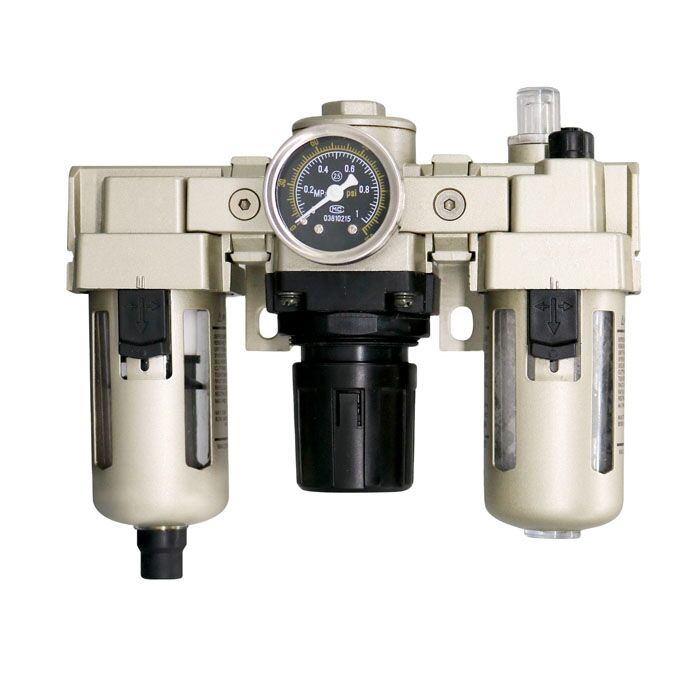

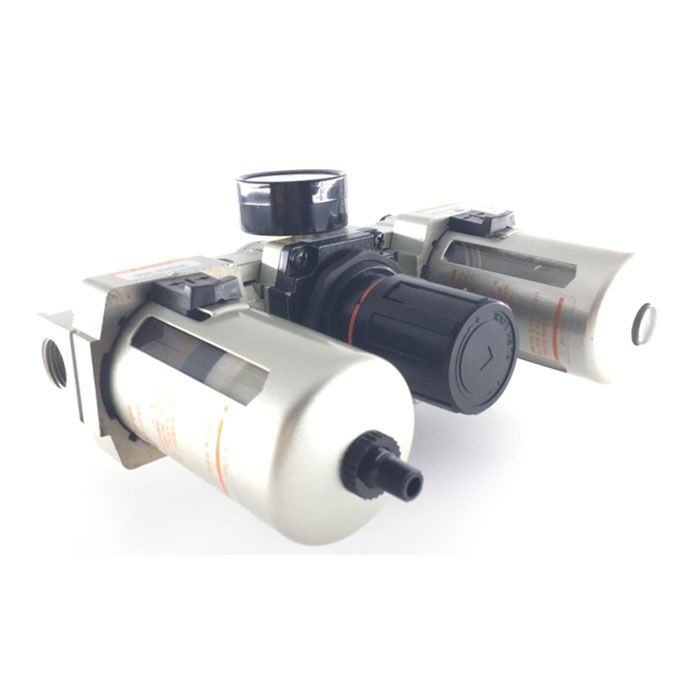

AC series FRL consists of a filter, regulator and lubricator.
Additional information
| Working Pressure | 0.5-8.5Bar |
|---|---|
| Operating Temperature | 5-60℃ |
| Suggested Lubricating Oil | ISO VG 32 |
| Max. Pressure resistance | 15 bar |
Product Details:
SMC Type FRL Unit AC series, Compressed Air Filter/regulator/lubricator, Air Source Treatment Unit, Air preparation
1.Classical design, durable ai control design
2.Energy saving and environmental protection with a big low rate, safety, and precision
3.Can work at the low pressure, smartness for on and off, good seal performance
4.Single action and double action types for your selection
5.Widely used in the food, machinery, industry, abstersion, printing and other areas
Specifications:
| Model | AC2000-01
AC2000-01D |
AC2000-02
AC2000-02D |
AC3000-02
AC3000-02D |
AC3000-03
AC3000-03D |
AC4000-03
AC4000-03D |
AC4000-04
AC4000-04D |
AC4000-06
AC4000-06D |
AC5000-06
AC5000-06D |
AC5000-10
AC5000-10D |
|
| Port size RC(PT) | 1/8” | 1/4” | 1/4” | 3/8” | 3/8” | 1/2” | 3/4” | 3/4” | 1/4” | |
| Pressure gauge port size | 1/8” | 1/8” | 1/8” | 1/8” | 1/8” | 1/4” | 1/4” | 1/4” | 1/4” | |
| Flow rate(L/Min) | 550 | 550 | 2000 | 2000 | 4000 | 4000 | 4500 | 5500 | 500 | |
| Fluid | Air | |||||||||
| Ensured pressure resistance | 1.5Mpa(15.3kgf/cm²) | |||||||||
| Max. operating pressure | 1.0Mpa(15.3kgf/cm²) | |||||||||
| Ambient & fluid temperature | 5~60°C | |||||||||
| Nominal filtration rate | 40µm | |||||||||
| Adjustable Pressure range | 0.05~0.85 | |||||||||
| Pressure gauge | Y40-01 | Y50-02 | ||||||||
| Main parts material | Body | Aluminum alloy | ||||||||
| Bowl | Iron | |||||||||
| Protective Cover | AC1000~AC2000:no AC3000~AC5000:available | |||||||||
