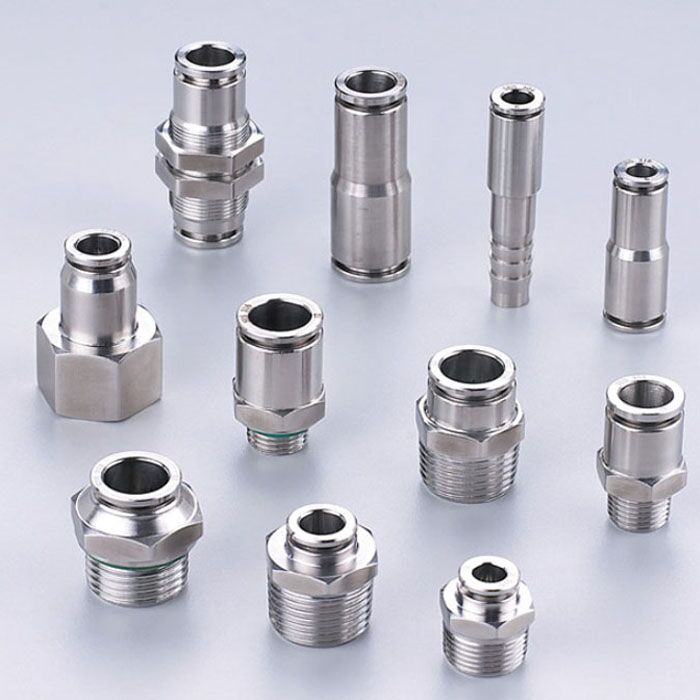

304/316 Stainless Steel Compression Tube Fittings Straight through type, pneumatic air fitting, Stainless Steel push-in fittings.

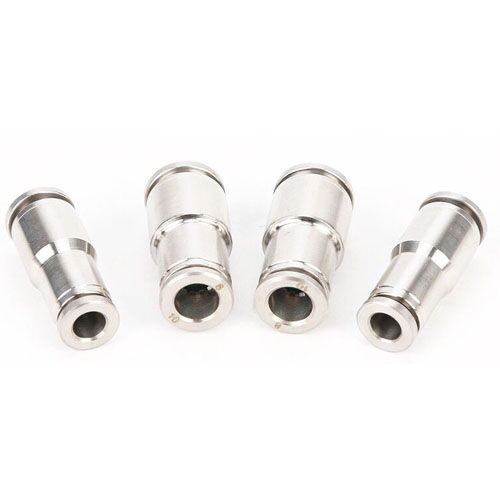

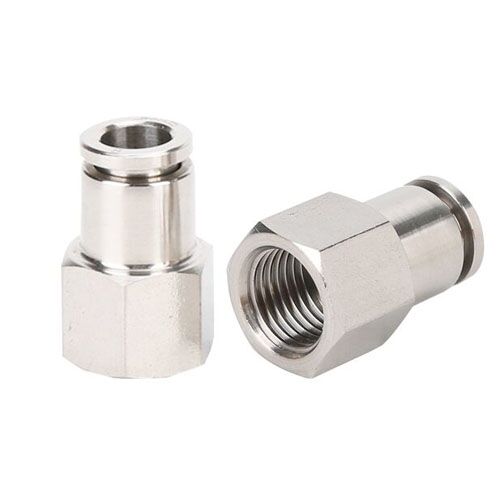

Straight through type includes: PC,PCF,PU,PG,PM,PMF and etc.
Specification:
Name
Pneumatic Stainless Steel Tube Fittings
Materials
stainless steel
Finish
Polished
Operating Pressure
-100KPa-1.2MPa
Operating Temperature
-10~60°C
Operating Pressure
0~1.2Mpa
Fluid
Air, Water, Oil
Diameter
Multi-sized
Features
Straight, push to connect/lock
Application
For PVC PU PE Rubber Silicone Plastic Tube Pipe Hose
Features:
Flexible pneumatic tubing is easily connected by simply inserting the tubing end into the fitting. To release the tubing, press the circular releasing sleeve and the tubing can be easily pulled out.
The rugged construction of the fittings allows for use in high-temperature applications.

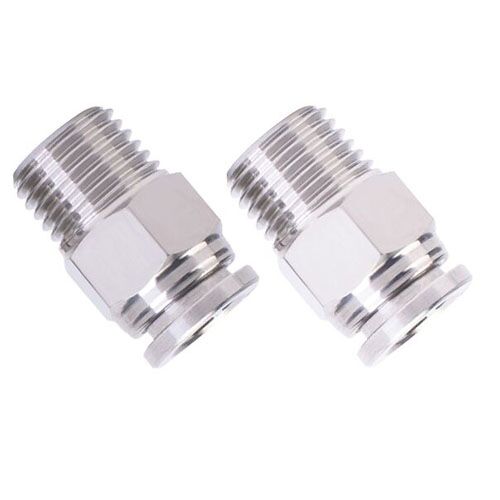

The PC type has interior and exterior hexagonal shapes for efficient piping.

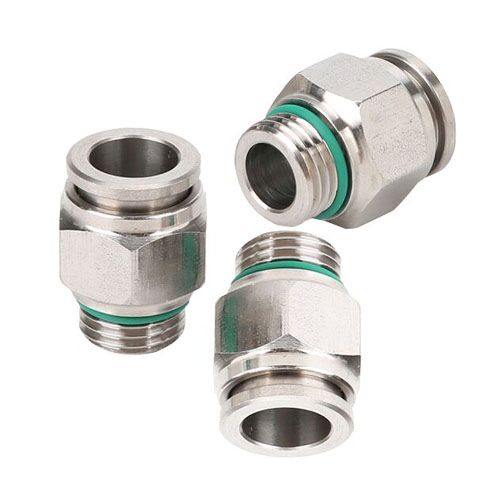

The screw section has O-ring, or Teflon coated
Stainless steel fittings can be used with polyurethane, nylon, and PTFE tubings.
