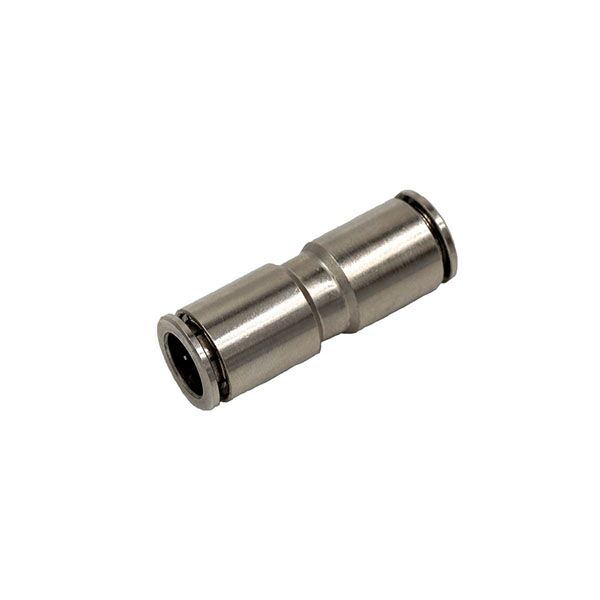

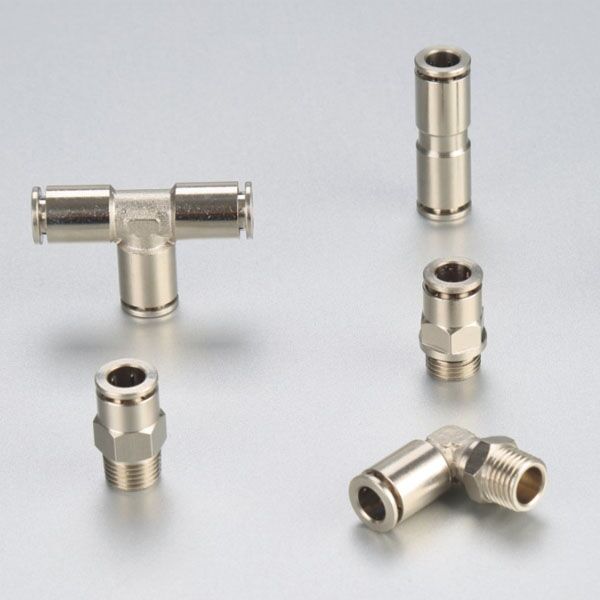

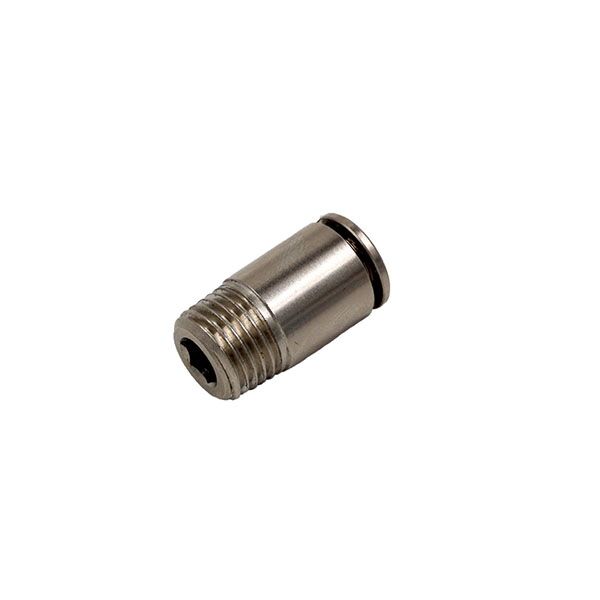

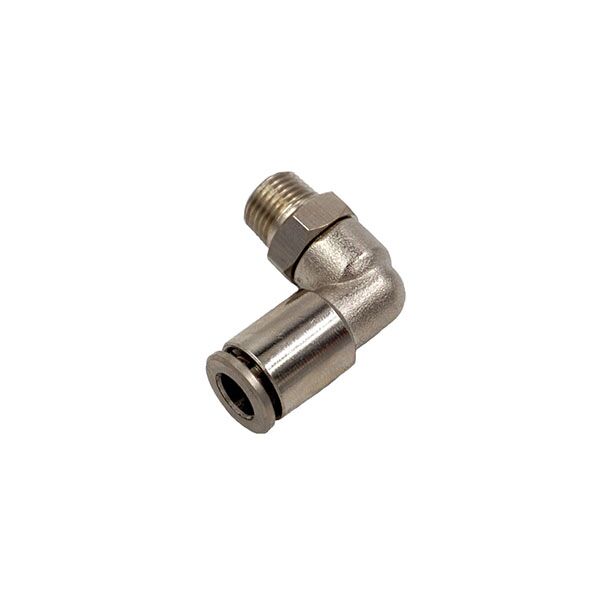

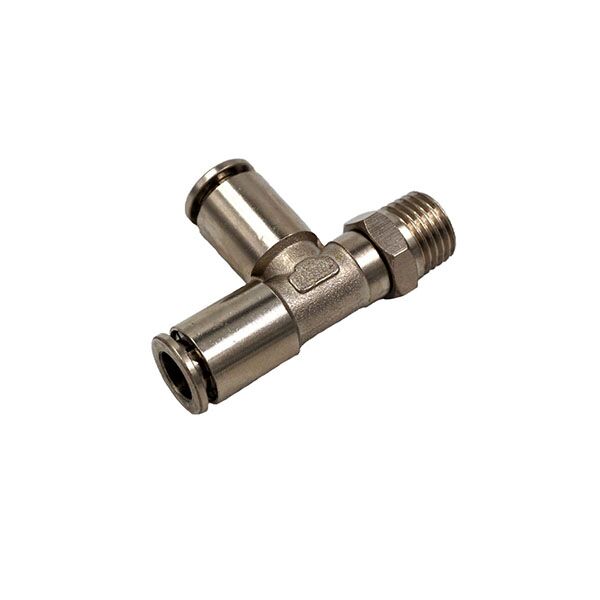

Metal Push in Fitting

Metal Push in Fitting

This series of metal air fittings are made of brass or stainless steel, are popular in connecting with other pneumatic parts.

Additional information

Product Details:

BSP one touch quick connect quick connect pneumatic brass hose connector


Tube Diameter Φ4 Φ6 Φ8 Φ10 Φ12Φ14Φ16
Working Medium Air
Working Pressure 0.095-2.5 MPa
Proof Pressure 1.6 Mpa
Proof Vacuum Pressure -100Kpa(10Torr)
Working Temp -30℃~100℃
Material Brass with nickle plated
