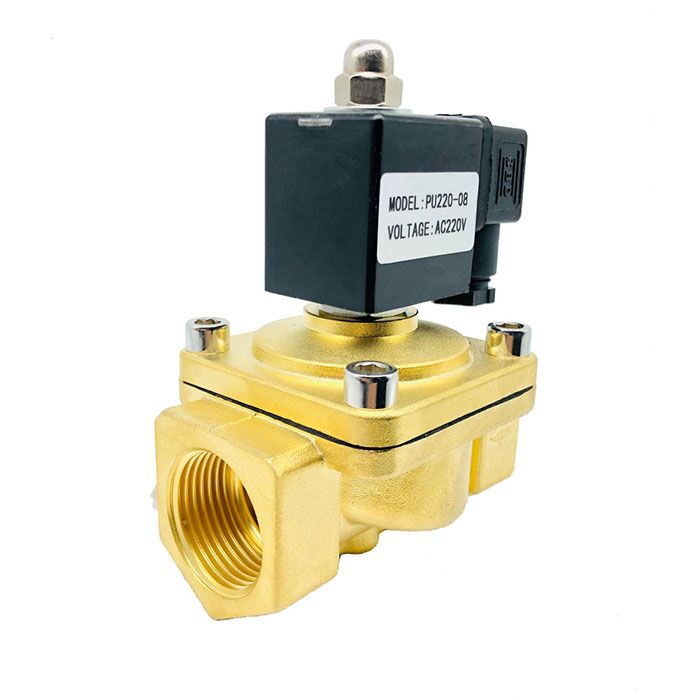

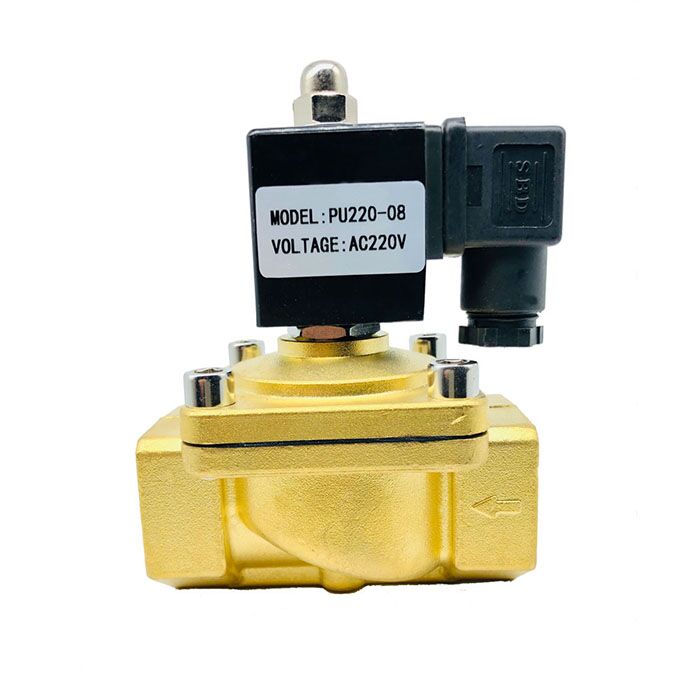

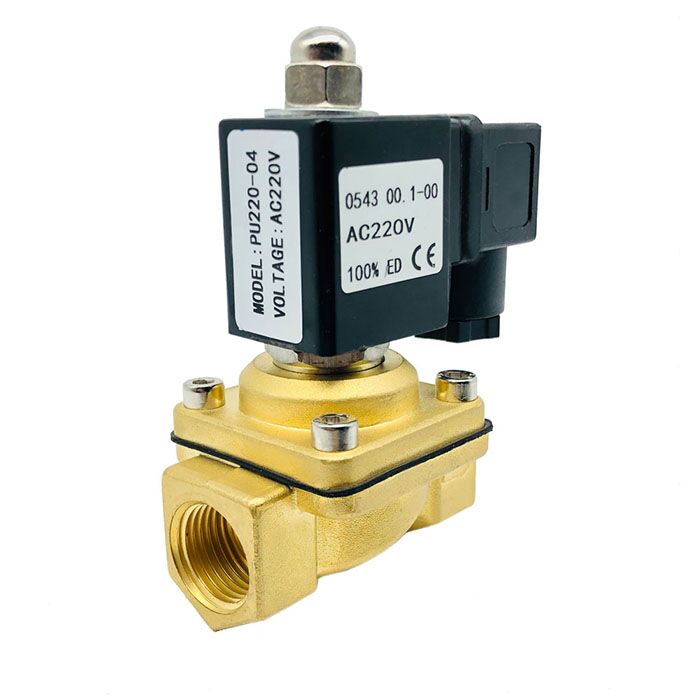

PU220 Direct Acting Solenoid Valve
PU220 Direct Acting Solenoid Valve
Additional information
| Working Media | Air, Oil, Water |
|---|---|
| Working Pattern | Direct Drive Type |
| Type | Normal Closed Type |
| Operating Temperature | -5 – 80℃ |
| Working Pressure | 0-0.7Mpa |
| Max. Pressure resistance | 1.05Mpa |
Product Details:
2/2 Way PU220 Series Brass Direct Acting Normally Closed Water Solenoid Valve
2 Way Water Solenoid Valve has below Characteristics：
Direct-acting for fast on / off
Durable stainless Armature
Ex-proof coils are available
Good for low-pressure operation
Compact and good appearance.
Direct-acting, diaphragm structure, can work at zero pressure.
Coil made from H class wire, thermosetting plastic encapsulation, reach IP65 protection class with plug.
| Model | PU220-01 | PU220-02 | PU220-03 | PU220-04 | PU220-06 | PU220-08 |
| Working Medium | Air,Water, Oil | |||||
| Acting Type | Direct Acting Type | |||||
| Control Style | Normal Close | |||||
| Valve Body | Brass | |||||
| Seal material | NBR、VITON 、EPDM | |||||
| Joint Pipe | G1/8″ | G1/4″ | G3/8″ | G1/2″ | G3/4″ | G1″ |
| Orifice(mm) | 1.5 | 2.3 | 8.0 | 13.0 | 20.0 | 25.0 |
| CV Value(m3/h) | 0.10 | 0.18 | 1.00 | 4.00 | 8.60 | 11.00 |
| Working-pressure | 0~0.7MPa | |||||
| Max.Pressure Resistance | 1.05MPa | |||||
| Working Temperature | -10~90°C | |||||
