MHC2 series Air Gripper
MHC2 series Air Gripper

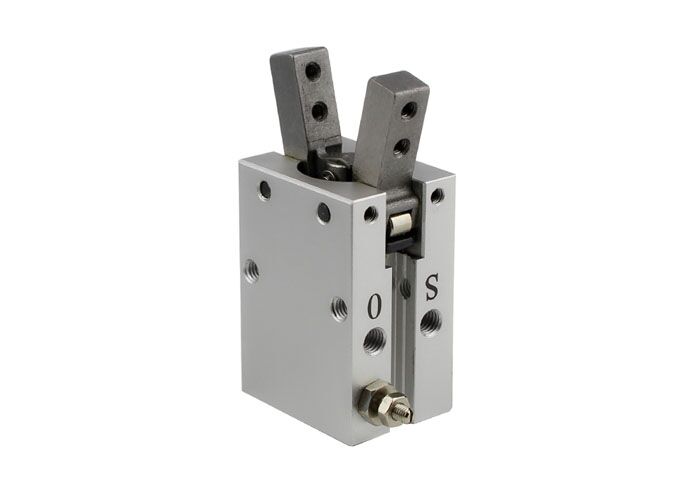

Air Gripper MHC2 series has an olid aluminum alloy structure, wear-resistant, strong and durable. Simple structure, easy to install and use.
Additional information
Product Details:

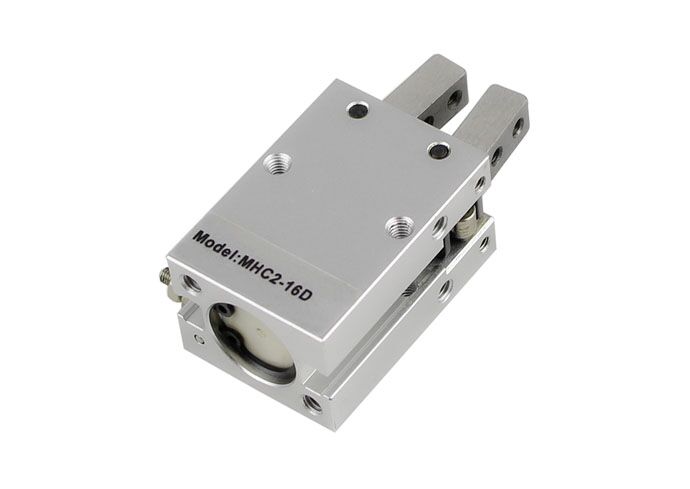

MHC2 series Pneumatic air cylinder pneumatic clamping finger, pneumatic air cylinder
Air Gripper Pneumatic Cylinder Action Method: Double Acting / Single Acting. Air Gripper Cylinder Precision manufacturing, stable performance, long service life. Solid aluminum alloy structure, wear-resistant, strong and durable. Simple structure, easy to install and use.
| Model | Cylinder bore | Action form | Note 1) keep force (N) switch | Note 1) constant force of N. Cm | Weight (g) |
| MHC2-10D | 10 | Double action | – | 9.8 | 39 |
| MHC2-16D | 16 | – | 39.2 | 91 | |
| MHC2-20D | 20 | – | 69.7 | 180 | |
| MHC2-25D | 25 | – | 136 | 311 | |
| MHC2-10S | 10 | -Single Action (Normally Open) | – | 6.9 | 39 |
| MHC2-16S | 16 | – | 31.4 | 92 | |
| MHC2-20S | 20 | – | 54 | 183 | |
| MHC2-25S | 25 | – | 108 | 316 |
Standard Specifications
| Bore Size(mm) | 10 | 16 | 20 | 25 | |
| Fluid | Air | ||||
| Acting Mode | Double acting, single acting: NO | ||||
| Max working pressure(mpa) | 0.7 | ||||
| Min Working Pressure(Mpa) | Double Acting | 0.2 | 0.1 | ||
| Single Acting | 0.35 | 0.25 | |||
| Fluid Temperature | -10-60℃ | ||||
| Max.Operating Frequency | 180c.p.m | ||||
| Repeated Movement Accuracy | ±0.01 | ||||
| Cylinder built-in Magnetic Ring | With (standard) | ||||
| Lubrication | If required, please use Turbine No. 1 oil ISO VG32 | ||||
| Port Size | M3X0.5 | M5X0.8 | |||
