CJ2 series Mini Cylinder
CJ2 series Mini Cylinder

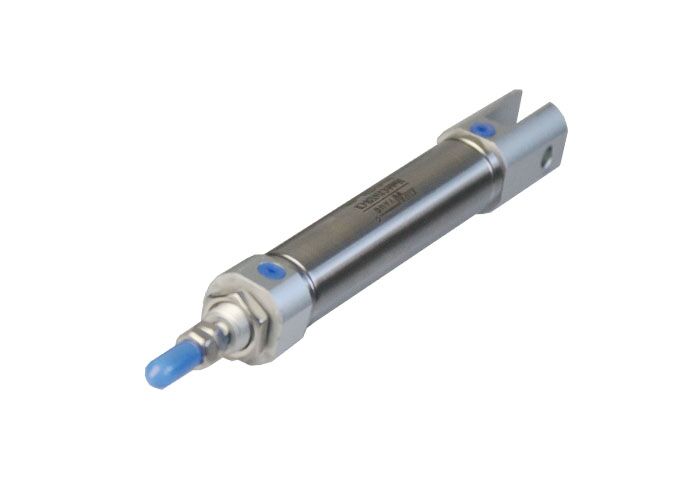

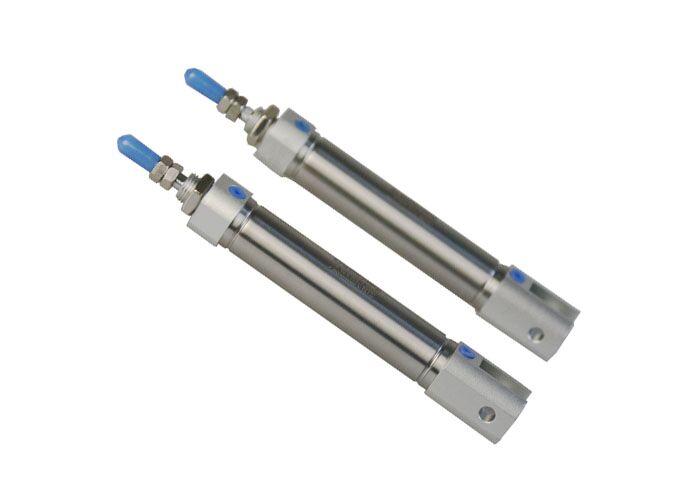

CJ2 Series Small MINI Pneumatic Air Cylinder adopts a long-life design that is easy to install; compact, lightweight, excellent dust-proof performance and special design of piston rod seal ring adapt to the poor working environment.
Additional information
Product Details:
CJ2 Series Small MINI Pneumatic Air Cylinder adopts a long-life design that is easy to install; compact, lightweight, excellent dust-proof performance and special design of piston rod seal ring adapt to the poor working environment. 1. Long-life design. 2. Easy to install. 3. Excellent dust-proof performance, special design of piston rod sealing ring, can adapt to a poor working environment. 4. The sealing ring can be replaced, greatly extending the service life of this series of cylinders.
Technical Specification
|
Bore Size(mm) |
6 |
10 |
16 |
|
Acting Mode |
Double acting |
||
|
Working Media |
Cleaned Air |
||
|
Working Pressure |
0.1-0.7Mpa(1-7kgf/cm2) |
||
|
Proof Pressure |
1.05Mpa(10.5kgf/cm2) |
||
|
Working Temperature |
-5~70℃ |
||
|
Buffering mode |
Without |
||
|
Port Size |
M5 |
||
|
Body Material |
Stainless Steel |
||
Selection Of Sensor Switch
|
Mode/Bore Size |
6 |
10 |
16 |
|
Sensor Switch |
CS1-F CS1-U CS1-S |
||
Stroke Of Cylinder
|
Bore Size(mm) |
Standard Stroke(mm) |
|
6 |
15 20 25 30 35 40 45 50 55 60 |
|
10 |
15 20 25 30 35 40 45 50 55 60 |
|
16 |
15 20 25 30 35 40 45 50 55 60 75 100 125 |
|
Bore Size(mm) |
A |
B |
C |
D |
F |
GA |
GB |
H |
MM |
NA |
NB |
ND h8 |
NN |
S |
T |
Z |
|
6 |
15 |
12 |
14 |
3 |
8 |
14.5 |
28 |
M3X0.5 |
16 |
7 |
6 |
M6X1.0 |
49 |
3 |
77 |
|
|
10 |
15 |
12 |
14 |
4 |
8 |
8 |
5 |
28 |
M4X0.7 |
12.5 |
9.5 |
8 |
M8X1.0 |
46 |
74 |
|
|
16 |
15 |
18 |
20 |
5 |
8 |
8 |
5 |
28 |
M5X0.8 |
12.5 |
9.5 |
10 |
M10X1.0 |
47 |
