2W Series 2/2 Way Brass Solenoid Valves
2W Series 2/2 Way Brass Solenoid Valves
Additional information
| Working Media | Air, Gas, Oil, Water |
|---|---|
| Working Pattern | Direct Drive Type |
| Type | Normal Closed Type, Normal Open Type |
| Operating Temperature | -5 – 80℃ |
| Voltage Range | ±10% |
Product Details:
2W Series 2-way Brass Solenoid Valve, Brass electric solenoid valve,
The two-way Brass solenoid valve is divided into a normally closed type and a normally open type.
Brief Introduction:
2W series small orifice Brass Solenoid Valve, also known as zero-pressure solenoid valve, the initial state for normally closed, normally open only available for thread that is smaller than 3/8″, that is thread size range from 1/8″ to 3/8″.
Here, we have din connector type and flying leads type,anti-explosion, and anti-water coil available. With stable quality and wide application, the 2W valve is useful in many fields. Brass Solenoid valves can be used in water treatment systems, irrigation systems, chemical industries/metallurgical industries/paper industries that require fluid control, and industries that can be used in pharmaceutical production and processing. You can search Google for more industries where solenoid valves are needed.
In TOPO automation, you can find reliable products which can help your business go faster.
Specification:
|
Model
|
2W160-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|
Working Medium
|
Air、Water、Oil、Gas
|
||||||
|
Acting Type
|
Direct Acting Type
|
||||||
|
Control Style
|
Normal Close/Normal Open
|
||||||
|
Orifice
|
16mm
|
20mm
|
25mm
|
35mm
|
40mm
|
50mm
|
|
|
CV Value
|
4.8
|
7.6
|
12
|
24
|
29
|
48
|
|
|
Joint Size
|
G3/8″
|
G1/2″
|
G3/4″
|
G1″
|
G11/4″
|
G11/2″
|
G2″
|
|
Working Pressure
|
Air:0~0.7Mpa ; Water:0~0.5Mpa ; Oil:0~0.5Mpa; Gas:0~0.7Mpa
|
||||||
|
Max.Pressure
|
1.05Mpa
|
||||||
|
Working Temperature
|
-5~80℃（The temperature can reach -5~150℃ if change the seal）
|
||||||
|
Valve Body
|
Brass
|
||||||
|
Seal material
|
NBR、VITON
|
||||||
How to order:

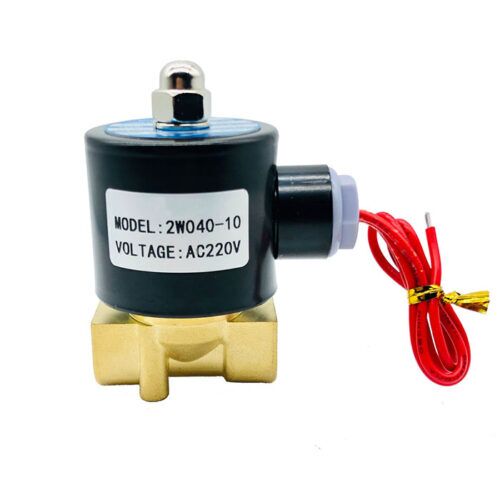

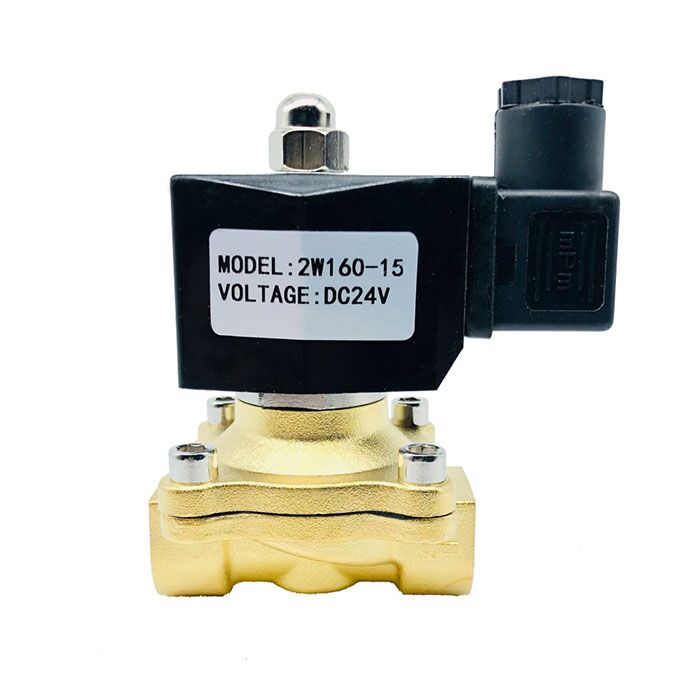

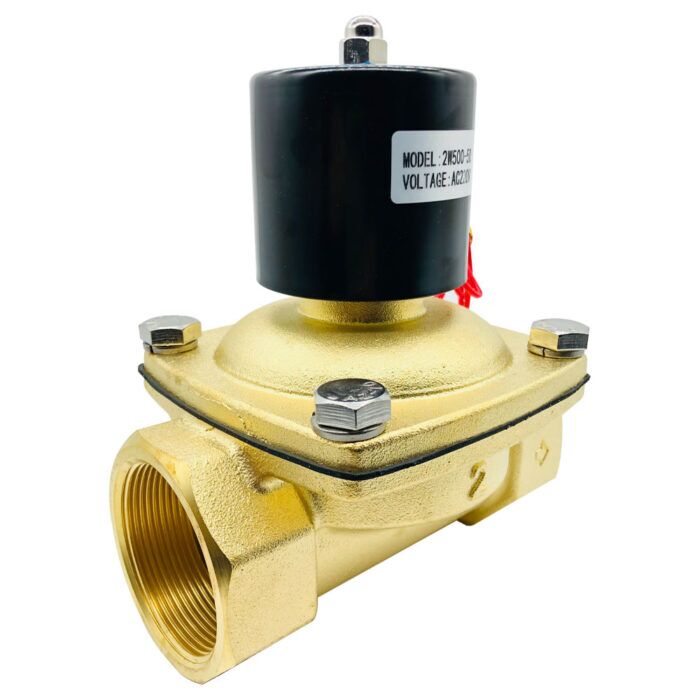

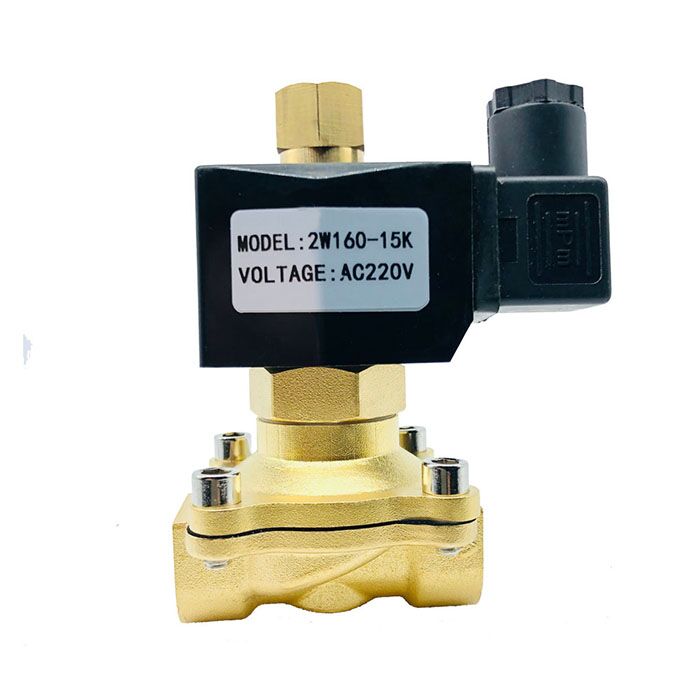

Production pics:
