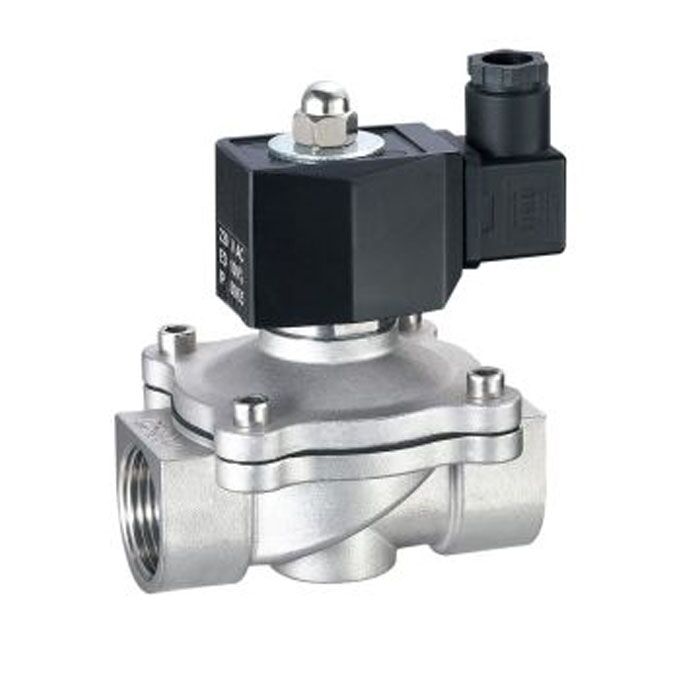

2S Series Stainless Steel Solenoid Valve Normally Closed type
2S Series Stainless Steel Solenoid Valve Normally Closed type
Characteristic:
1.It can use in Water,Oil,Gas,Air Medium
2.Voltage: DC12,24,36;AC36,110,220,380V
3.Port Size :3/4inch
4.Working temperature : NBR:-5~80°C;VITON:-5~180°C
5.Max valve pressure : 10.5KGF/CM
6.Working Pressure : 0~5 KGF/CM for diesel
Additional information
Product Details:
2S Series 16mm Orifice Stainless Steel 304 Solenoid Valve Normally Closed type
Specification:
1 direct-acting normally closed two solenoid valve, commutation quickly and sensitively;
2. The structure is light and compact;
3. Body material is stainless Steel;
4.Suitable for a variety of working mediums.

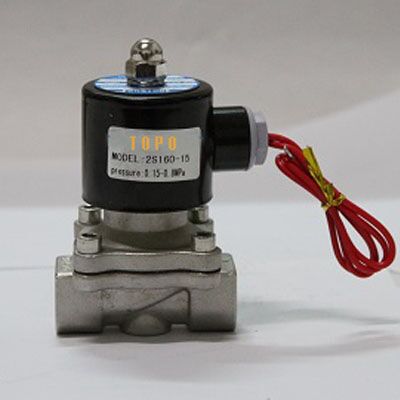

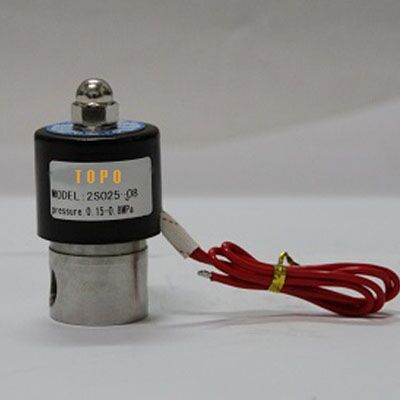

| Model | 2S025-06 | 2S025-08 | 2S040-10 | 2S160-10 | 2S165-15 | 2S200-20 | 2S250-25 | 2S350-35 | 2S400-40 |
| Working Medium | Air、Water、Oil、Gas | ||||||||
| Acting Type | Direct Acting Type | ||||||||
| Control Style | Normal Close | ||||||||
| Orifice | 2.5mm | 4mm | 16mm | 20mm | 25mm | 35mm | 40mm | ||
| CV Value | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | ||
| Joint Size | G1/8” | G1/4” | G3/8” | G3/8” | G1/2” | G3/4” | G1” | G11/4“ | G11/2“ |
| Medium Viscidity | ≤20CST | ||||||||
| Working Pressure | 0~0.7Mpa | Air、Gas:0~0.7Mpa; Water、Oil:0~0.5Mpa | |||||||
| MAX.Pressure | 1.05Mpa | ||||||||
| Working Temperature | -5°C-80°C | ||||||||
| Voltage Range | ±10% | ||||||||
| Valve Body | Stainless Steel | ||||||||
| Seal material | NBR、EPDM、 VITON | ||||||||
