The Ultimate Guide to Pneumatic Fittings: Types, Applications, and Selection Criteria

Introduction of Pneumatic fittings

If you’ve ever worked with an air-powered system—whether in a factory, on a car, or even in a dental chair—you’ve encountered pneumatic fittings. They may be small, but these connectors are absolutely vital. They’re the unsung heroes that keep pressurized air flowing smoothly from one component to another, making sure your entire system works like it’s supposed to.

This guide isn’t just about listing different types of fittings. It’s a hands-on, real-world look at how pneumatic fittings function, where they’re used, what they’re made of, and—most importantly—how to choose the right one for your setup. Whether you’re an engineer, a technician, or someone setting up your first compressed air system, you’ll find practical advice here to save you time, money, and headaches. If you have known them well, just go to its page to choose what you need exactly or get quotation.

Let’s dive in.

1.What Are Pneumatic Fittings?

Pneumatic fittings are connectors that let you join pipes, tubes, or hoses in any system that runs on compressed air.

They help direct the flow where you need it and make sure nothing leaks out along the way.

Anyway,you can think of them like the Lego pieces of your air system—they snap parts together so everything works in sync.

As we all know that there’s no one-size-fits-all fitting. You’ve got options: some click into place with ease, others are threaded and tough enough for heavy-duty jobs. You’ll even find ones built to handle clean-room conditions in food or medical setups. The right fitting makes your system more efficient, cuts down on downtime, and honestly—just makes life easier when things need adjusting.

2.Types of Pneumatic Fittings

Here’s a quick breakdown of the most common types of pneumatic fittings you’ll find, and where they work best:

Push-to-Connect Fittings: These are super convenient. Just push the tube in and it locks. No tools, no fuss. Best for quick setups and tight spaces—think factory automation or lab equipment.

Threaded Fittings: These screw into place and give a strong, secure seal. You’ll see them on compressors or in industrial plants where pressure can get pretty high.

Compression Fittings: These use a ferrule and nut to seal the connection. They’re neat, clean, and great for systems that need to stay airtight—like instrumentation and control setups.

Barbed Fittings: Slide your hose over the ridged end and clamp it down. Simple, low-cost, and perfect for light-duty jobs like aquariums or small tools.

Quick-Disconnect Couplings: Want to swap tools fast without shutting down everything? These make it easy—just click in, click out. Great for workshops and pneumatic tool systems.

Each type has its strengths, and knowing when to use what will save you from a lot of trial

3.What Materials are Used in Pneumatic Fittings

Choosing the right material for your pneumatic fittings isn’t just about price—it can affect everything from safety and durability to efficiency and maintenance. Here’s a closer, down-to-earth look at the most common materials, real-world examples, and when each one makes sense.

Brass

Why it’s popular: Brass is durable, corrosion-resistant, and relatively easy to machine. It works well in a wide range of temperatures—from -40°C up to 120°C—and is compatible with most lubricated air systems.

Real-world use: You’ll often see brass fittings in industrial factories and garages. One of our customers in the auto repair industry switched to brass from plastic and reported a 30% drop in air leaks over six months.

Best for: General-purpose pneumatic tools, air compressors, and automotive workshops.

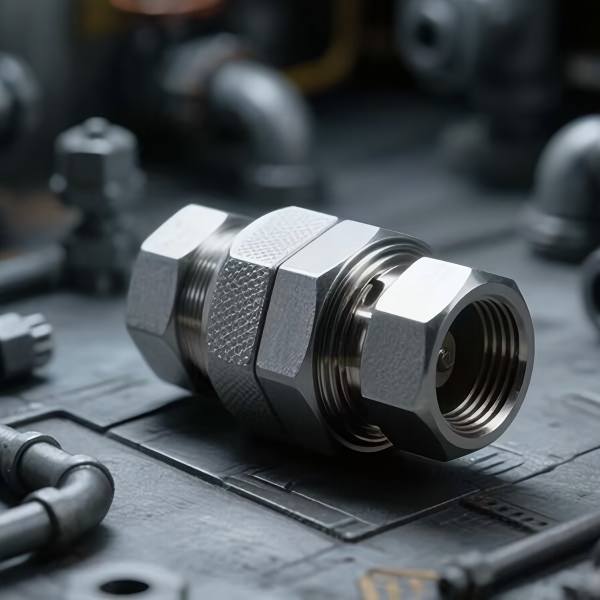

Stainless Steel

Why it’s a premium choice: Stainless steel can handle extreme environments—think moisture, salt, or aggressive cleaning agents. It’s also strong enough to maintain pressure at 250 psi or more, and resists corrosion longer than brass.

Data point: In food or pharmaceutical production, stainless steel is often required by hygiene standards like FDA or ISO 14159. One stainless steel fitting might cost 2–3x more than a brass one, but it could last twice as long in a wet production line.

Best for: Food processing, marine equipment, chemical labs, and cleanroom systems.

Plastic (such as PBT, nylon, or polypropylene)

Why it’s a smart budget option: Lightweight, low-cost, and corrosion-proof. Plastic fittings are perfect for systems where pressures stay below 100 psi and there’s no harsh temperature or chemical exposure.

Use case: A small electronics assembly plant uses nylon push-to-connect fittings for its pneumatic pick-and-place machines. They chose plastic because it’s quiet, easy to install, and there’s no risk of metal particles in sensitive areas.

Best for: Light-duty systems, small automation setups, and budget-conscious projects.

When in doubt, think about the environment your fitting will live in. Will there be moisture? High heat? Exposure to cleaning fluids? Matching the material to the environment is half the battle in avoiding failure and extra maintenance costs.

4.Various Applications of  Pneumatic Fittings

Pneumatic fittings aren’t just hiding inside machines—they’re doing heavy lifting across entire industries. From bakery lines to assembly robots,Here are some examples:

Industrial Automation In factories, pneumatic fittings keep production lines moving.

For example, a robotics manufacturer in Germany uses push-to-connect fittings to speed up maintenance on their pick-and-place arms. Their maintenance team reported a 50% faster turnaround after switching from threaded connectors.

Automotive Systems Air brakes, tire inflation systems, engine assembly lines—you name it.

One major truck OEM in Brazil uses stainless steel compression fittings for their high-vibration environments to prevent leaks that used to occur every 3–4 weeks with plastic ones.

Food and Beverage Cleanliness and speed matter.

A dairy processing plant in New Zealand relies on quick-disconnect stainless steel fittings. Why? They sanitize fittings daily with high-pressure steam and can’t afford corrosion or downtime.

Medical and Dental Equipment Precision is key.

A dental tool manufacturer chose small nylon barbed fittings to control airflow to handpieces—they’re light, silent, and inexpensive to replace. It’s small, but patients feel the difference.

DIY and Hobbyist Use Even home workshops use pneumatic fittings—for airbrushes, tire inflators, and small tools.

One hobbyist told us he uses brass quick couplers to switch between tools in his garage without losing air pressure or wasting time.

However,you can explore more others such as Texitle Industy, Packing Industry, Mining Industry that also use pneumatic fittings a lot.

Each industry values something different: speed, hygiene, durability, or ease of maintenance. But behind the scenes, it’s the fittings doing the quiet work to keep systems reliable and efficient.

5.How to Choose the Right Fittings

Let’s be honest—choosing the right pneumatic fitting can feel a bit like standing in the hardware aisle staring at 20 different light bulbs. You know they all light up, but which one actually fits your fixture and won’t burn out in a week?

Same goes for fittings. Here’s how to think through it:

Firstly, start with the basics—what’s the job? Is this going into a high-pressure line? Will it be cleaned every day with aggressive chemicals? Is it tucked into a machine where space is tight?

Next, think about material. If you’re working in a food-grade environment or outdoors near saltwater, stainless steel might be the safest bet. Tight budget and light-duty? Plastic could do just fine. For everything in between, brass usually wins the middle ground.

Then, connection style:

Need quick maintenance? Push-to-connect.

High vibration or pressure? Threaded or compression.

Swapping tools often? Quick-release couplings.

And don’t forget the tubing. Match fitting size and shape exactly. A snug fit isn’t “close enough” here—it has to be exact, or you risk leaks.

Pro tip: If you’re unsure, buy two or three styles and test them. Nothing teaches you faster than five minutes with a wrench and an air leak.

Also, talk to your supplier. The good ones ask you more questions than you ask them—and that’s a good thing. They’re trying to save you from wasting money or damaging equipment.

The most famous suppliers of pneumatic fittings are SMC & FESTO. They have lots of models for your choices.

At the end of the day, the right fitting saves you more than just air pressure. It saves you from downtime, from callbacks, and from digging through the tool drawer on a Saturday afternoon wondering why something won’t stay put.

6.Installation and Maintenance Tips

Let’s say you’ve chosen the perfect pneumatic fittings—nice! But if they’re installed poorly or left unchecked, even the best parts can cause frustrating leaks, pressure loss, or costly downtime. Here’s how to make sure that doesn’t happen.

First, let’s talk installation.

Too often, people either overtighten or undertighten fittings. Both are bad. If you overtighten a threaded fitting, you can crack plastic, deform brass, or strip threads. If it’s too loose? Say hello to air leaks.

Here’s what we recommend:

• Use thread sealant or PTFE tape for all threaded metal fittings (unless pre-coated). Don’t wrap it all the way to the end—leave the first thread bare to avoid debris entering your air system.
• For push-to-connect fittings, make sure your tube is cut clean and square. A diagonal cut creates weak seals and leaks. Use a proper tube cutter, not scissors or a knife.
• Push the tube in firmly until you feel it bottom out. Give it a light tug—if it comes out, it wasn’t seated right.

One customer—a furniture factory in Malaysia—reduced their system pressure drops by 18% just by retraining staff to properly seat push-in fittings. No new parts, just better habits.

Now, on to maintenance.

Pneumatic fittings don’t need much attention, but neglect can cost you.

Here’s a quick monthly checklist that’ll save you a lot in the long run:

Visual check: Look for signs of wear, cracks, or corrosion. Especially in high-humidity environments.

Listen for leaks: A quiet whistle or hiss can point you straight to a failing seal.

Re-tighten (gently!) any connections that seem loose—especially if your machines vibrate a lot.

Replace tubing if it looks brittle, yellowed, or scratched. Tubing failure is often blamed on fittings, but it’s usually the tube itself that goes first.

Pro tip: Keep a fitting assortment box on hand with at least one backup of every fitting type in your system. Downtime waiting for a $2 fitting isn’t worth it.

And finally, label your lines. A simple color-coded or tagged setup makes maintenance faster and reduces mistakes when replacing parts. One packaging company we worked with cut their repair time in half by simply labeling every line going into their main manifold.

Bottom line? A well-installed and well-maintained fitting can last years. But a sloppy connection can cause problems from day one. Take a few minutes now, save hours (and hundreds of dollars) later.

7.Common Challenges and Solutions of Air Push In fittings

Even with the best intentions—and best fittings—things can still go wrong. That’s just reality. But most pneumatic issues follow a pattern. Once you recognize them, they’re easier (and cheaper) to fix. Let’s go through a few of the most common troublemakers and how to stay ahead of them.

Air leaks that won’t quit?

You’d be surprised how many shops run compressors longer than needed just to make up for invisible leaks. One plant manager told us they were wasting nearly 20% of their air capacity. The culprit? A handful of push-to-connect fittings that weren’t fully seated.

Solution: Add a simple soap-and-water spray test into your weekly routine. It’s low-tech, but effective. Spray a little soapy water on fittings—bubbles will tell you where your air is escaping.

Fittings keep coming loose?

This one’s often seen in equipment with vibration—like air-powered grinders or mobile compressors. Threaded fittings can work themselves loose over time.

Solution: Use vibration-resistant thread sealant and consider switching to push-to-connect or compression fittings if your setup allows. Also, check your tubing length—too tight, and it pulls on the fitting.

Mismatched materials

We’ve seen stainless steel fittings used with polyethylene tubing in outdoor setups. Guess what? The tube got brittle and cracked in the sun, while the fittings stayed flawless. Right material, wrong match.

Solution: Always think of your fitting and tubing as a team. If one is rated for 120°C and the other melts at 80°C, you’re asking for failure.

Tubing cuts that cause chaos

Here’s something simple that causes big problems: a bad tube cut. If the cut isn’t straight and clean, even the best push-in fitting won’t seal properly.

Fix: Get a good quality tube cutter (they cost less than lunch) and train your team to use it.

Thinking ahead: what’s next?

Here’s where things get interesting. Smart manufacturers are already embedding sensors into pneumatic lines to monitor leaks, pressure drops, and wear—before problems show up. That might sound futuristic, but compact pressure sensors and inline flow monitors are getting cheaper and easier to install.

One example: a European packaging company added basic sensors to their pneumatic control panels and cut maintenance calls by 40%. That’s not magic—it’s just better visibility.

And don’t forget about environment-friendly upgrades. Switching to fittings made from recyclable materials or that require less energy to manufacture can help you meet sustainability goals, especially if your clients care about green practices.

In short: fixing problems is good. But spotting them before they cost you time, energy, or customers? That’s next-level smart. And with a little foresight, you can get there without spending a fortune.

8.Conclusion of this Article

Let’s face it—pneumatic fittings aren’t the flashiest components in your system. They’re not as big as a compressor or as high-tech as a sensor. But without them? Nothing works. Literally.

Keep an eye on them

If there’s one thing you take away from this guide, let it be this: the small stuff matters. Choosing the right fitting, installing it correctly, and keeping an eye on it over time can save you from a lot of headaches—not to mention lost productivity and unnecessary repair bills.

It’s not just about specs and standards. It’s about real-world performance. It’s about preventing leaks before they happen. It’s about having that one spare coupling when something breaks on a Friday afternoon. It’s about understanding what’s going on behind the scenes so your system just… works.

Pay attention to them every day

Whether you’re maintaining a massive automated line or running a small shop with a few air tools, your fittings are part of the foundation. Treat them like the crucial components they are, and they’ll return the favor by keeping everything running smoothly.

And if you’re ever unsure, don’t be afraid to ask for advice. The best suppliers don’t just sell parts—they help solve problems.

TOPO AUTOMATION is glad to answer any of your questions.

After all, in pneumatics, it’s not just about moving air. It’s about keeping everything else in motion, too.
