4 Top Points About Push to Connect Air Fittings

1. What Are Push to Connect Air Fittings?

Let’s keep it simple. A push to connect air fittings is a small but incredibly useful component.

It allows you to connect a tube to a pneumatic system quickly — no tools, no clamps, no threads.

You just push the tube in, and it locks into place.

It might seem like a small detail, but in practical settings, it makes a big difference.

Instead of struggling to thread a fitting in a tight space or worrying about sealing it properly, this type of connection streamlines the entire process. It saves time, reduces the chance of mistakes, and turns what used to be a lengthy task into something quick and easy.

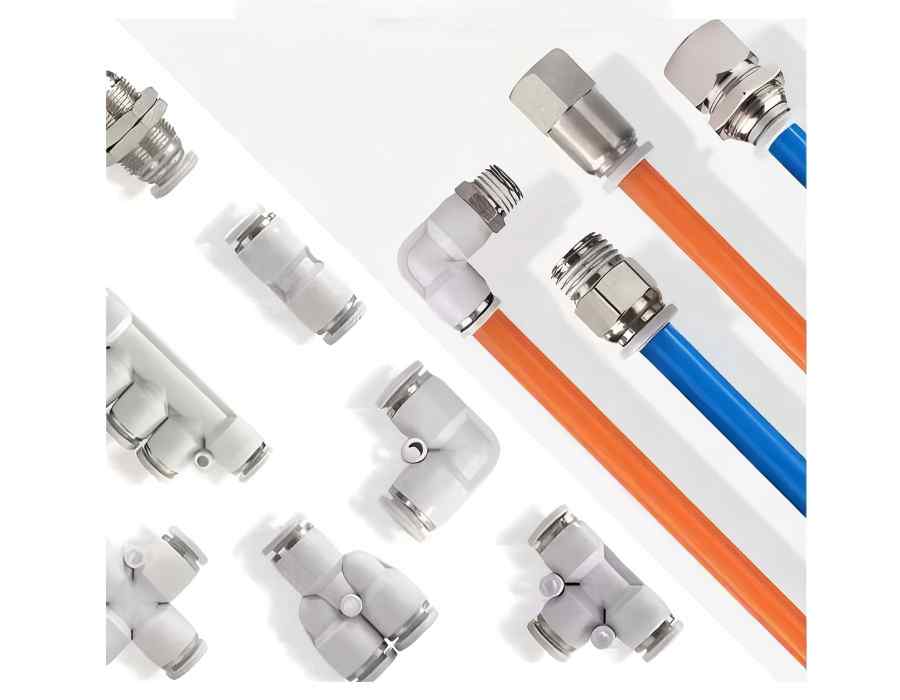

It’s Not About Plastic vs. Metal — It’s About the Mechanism

People often confuse push-to-connect fittings with plastic quick-fits.

In reality, the “push-to-connect” term describes a locking system, not the material. These fittings can be:

Nickel-plated brass — durable, cost-effective, and resistant to corrosion.

Stainless steel — preferred for hygiene or aggressive environments.

Composite plastic — for lightweight or portable systems.

On the PARKER website you can quickly see what this connector looks like.

They all work the same way:
Inside the fitting is a collet — a ring with metal teeth that grip the tubing

— and an O-ring that forms a tight seal around it.

Once the tube slides in, it’s held firm. To release it, you press the collet down and pull the tube out.

Why Push-to-Connect Air Fittings Matters in Real Life

A machine shop uses compressed air to power dozens of tools — grinders, air knives, robotic arms.

These fittings allow the technician to reconfigure or replace lines in seconds. No leaks. No downtime. No tools.

An OEM packaging equipment manufacturer designs a system with over 80 air lines.

Traditional fittings would require Teflon tape, torque specs, leak testing, and wrenches.

Push fittings simplify the bill of materials, reduce labor time, and keep everything modular and serviceable.

That’s what push-to-connect air fittings do.
They don’t just connect tubing — they remove friction from your workflow, quite literally.

2. Who Uses Push-to-Connect Air Fittings — And Where?

To understand who needs push-to-connect air fittings, it helps to picture the journey of the fitting itself — from warehouse shelves to real-world machines.

🔹 Distributors: Large-volume stockist of push-fit air fittings

Distributors and resellers are often the first to handle these fittings.

Whether they’re supplying components for an industrial project or maintaining stock for local workshops, these businesses value fittings that are:

Standardized: Easy to sort, label, and stock.

Fast-moving: Frequently ordered by repeat customers.

Versatile: Suitable across industries.

“We keep push-to-connect fittings in every size — they sell faster than anything else in the pneumatic category.”
— Tom H., inventory manager, industrial supply distributor (US)

E-commerce sellers on platforms like Amazon, Alibaba, Walmart and Grainger also include these fittings in their catalogs, offering kits or individual units to both professionals and hobbyists.

🔹 End Users: The People Who Actually Use Them

These fittings are not shelf warmers — they’re workhorses used in daily operations by:

Automation technicians who build or maintain production lines.

Machine repair engineers who need quick solutions on-site.

DIY builders creating custom setups for automotive or CNC projects.

Facility maintenance teams in factories, hospitals, and warehouses.

Air tool users in workshops, from painters to mechanics.

Here are 2 real life use cases of Push-to-Connect Air Fittings from our customers:

Case 1 – The Factory Line
One of our customer who is a packaging company,uses 30+ air cylinders to sort, press, and seal boxes.

Each cylinder requires a secure air supply line.

Instead of using threaded fittings (which take time and skill to install), the maintenance team opts for push-in fittings. During routine inspections, worn-out tubes can be replaced in minutes — no leaks, no production delays. We have worked together for 5 years till now.

Case 2 – The Custom Garage Setup
A custom car restorer sets up a compressed air system in his garage for paint spraying and pneumatic tools. He uses push-to-connect fittings to route air lines cleanly across the wall, connecting flexible PU tubing to couplers, filters, and regulators. No tools needed, and the system is fully modular — easy to upgrade or expand.

🔹 What Kinds of Equipment Use These Fittings?

Push-to-connect air fittings appear in countless applications — sometimes in places you’d never expect.

Why It Matters

Push-to-connect fittings are not a niche product. They’re used across industries — from automotive manufacturing to tabletop airbrush kits. What unites these users is a need for:

Speed

Reliability

Ease of maintenance

Whether you’re a procurement officer for a plant, a maintenance engineer in a hospital, or a maker in a home garage, these fittings deliver what you need: clean connections, less hassle.

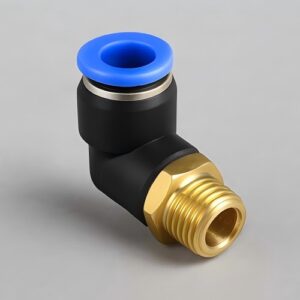

3. Do Push-to-Connect Air Fittings Leak?

Yes,they do — and It’s Usually Our Fault

Here’s the truth: push-to-connect air fittings are reliable, but they’re not magic. If you’ve worked with pneumatic systems long enough, you’ve probably heard the telltale hiss of a leak after installation. It’s frustrating — especially when everything looks fine.

Most of the time, the fitting isn’t to blame. The problem is how we cut, connect, or choose the tubing. And once you understand where it goes wrong, it’s pretty easy to fix.

🔍 So, what causes the leaks?

1. Improper Tube Cut

If the end of the tube is cut at an angle, is jagged, or squashed, the O-ring inside the fitting can’t seal properly. It creates micro gaps where air escapes.

2. Incomplete Insertion

Sometimes, the tube seems “in,” but it hasn’t passed the O-ring. A partial insertion looks fine — until you pressurize the line and hear a hiss.

3. Damaged or Contaminated Tubing

Tubing with scratches, dirt, or embedded particles can damage the internal seal or interfere with the grip of the collet.

4. Incorrect Tubing Material or Size

A fitting designed for polyurethane may not seal well with a harder nylon tube. And a mismatch in outer diameter — even by 0.5 mm — can be a recipe for failure.

5. Temperature or Pressure Extremes

Seals can degrade or harden with heat. Sudden pressure surges can cause the tube to slip or the O-ring to deform.

6. Old or Worn-Out Fittings

Nothing lasts forever. After years of use, especially in industrial settings, the O-rings can crack or lose elasticity.

🛠 Here’s what actually works

If you’re chasing down a leak, start with the tubing.

Cut the end clean and square — ideally with a proper tube cutter.

Forget scissors or knives. A fresh cut solves more problems than most people think.

Check the fit. Push the tube in firmly until you feel it slide past the O-ring.

Give it a gentle tug — it should hold. If it pops out easily, it was never fully inserted.

Still leaking? Pull the tube out and take a look inside the fitting.

Sometimes a little piece of debris or a torn O-ring is all it takes to cause a problem. If the O-ring is damaged, replace the fitting — or just the seal if your brand allows it.

And here’s a trick from the shop floor: use a little soapy water around the fitting while the system is pressurized.

If bubbles form, you’ve got a leak. No bubbles? You’re good.

✅ Pro Tips to Prevent Leaks Long-Term

Use tubing and fittings from the same manufacturer when possible. Tolerances vary.

Don’t reuse tubing ends. Cut off 1–2 cm before reconnecting.

Label pressure zones. If pressure spikes are frequent, switch to fittings with locking clips or metal bodies.

Keep a maintenance kit with spare O-rings and pre-cut tubing sections.

“In our shop, we had persistent leaks until we realized a junior tech was cutting tubes with utility knives. We switched to a ratcheting tube cutter and haven’t had an issue since.”
— Jason C., Maintenance Supervisor, Automotive Parts Plant

Leaks happen. But with good practices and a clear eye for detail, they can be minimized — or eliminated entirely.

4. Can You Use Push-to-Connect Air Fittings in Vacuum Systems?

Short Answer: Yes — But Don’t Assume It’s Plug-and-Play

You’d be surprised how often this comes up.

Someone installs a row of push-in fittings for a vacuum line, fires up the system… and then spends two days chasing leaks.

Push-to-connect fittings can work under vacuum — many people use them successfully every day.

But whether they’ll work in your system depends on a few key details that are easy to overlook.

Let’s walk through what really matters.

What Makes a Push to Connect air Fittings Vacuum-Compatible?

Not all fittings are created equal. Some will hold vacuum reliably. Others will hiss and fail quietly.

So instead of relying on product labels, here’s a better way to think about it:

Rather than asking “Can I use a push fitting?”, the better question is:

“Is my fitting and tubing combination vacuum-worthy?”

Let’s Make It Real

Take an automated pick-and-place robot. It uses a small vacuum cup to lift delicate components.

This kind of setup often uses brass push-in fittings and vacuum-rated PU tubing. They are lightweight, compact, and easy to replace during maintenance. As long as the vacuum level is reasonable (say, -70 to -85 kPa), it works beautifully.

Now compare that to a vacuum oven used for material drying in a lab.

That environment runs hot, near full vacuum, and stays sealed for hours. Push-in fittings? Too risky.

In that case, going with threaded metal fittings and ferrule compression seals is the smarter move.

What to Watch Out For

Here’s what tends to go wrong — and how to sidestep it:

Tubing collapse under suction: A soft or thin tube can cave in like a straw under pressure. Use tubing designed for vacuum.

Seal failure over time: A single O-ring may hold at first, but repeated cycles of expansion, heat, or vibration can slowly degrade it.

Fittings pop off unexpectedly: Under sustained negative pressure, the grip of the collet may weaken — especially if the tube wasn’t fully inserted.

None of this means you can’t use push-to-connects. It just means you need to know your limits.

Field-Proven Guidelines (Between Push to Connect air fittings &Vacuum)

Some brands explicitly mark their fittings as vacuum-rated.

But even if they don’t, many experienced techs follow these informal rules:

If the fitting is metal and the tubing is PU or nylon, it’s probably safe for moderate vacuum (up to ~ -28 inHg).

If you’re working with soft tubing and unknown plastic fittings, avoid vacuum use altogether.

If you’re running a critical process (medical, lab, safety-sensitive), don’t take shortcuts ,instead, use secure threaded or barbed vacuum fittings with clamps.

Push-to-connect fittings were made for speed and convenience, and yes, they can absolutely serve in vacuum systems — when matched correctly.

But like any shortcut, if you skip the details, it’ll bite you back.

Conclusion

Push-to-connect air fittings are simple in design but powerful in impact. They save time, reduce errors, and make pneumatic systems easier to build and maintain — when used correctly. But like any component, they demand some respect. The right cut, the right match, and the right conditions make all the difference.

Used wisely, they’re not just convenient — they’re dependable.
